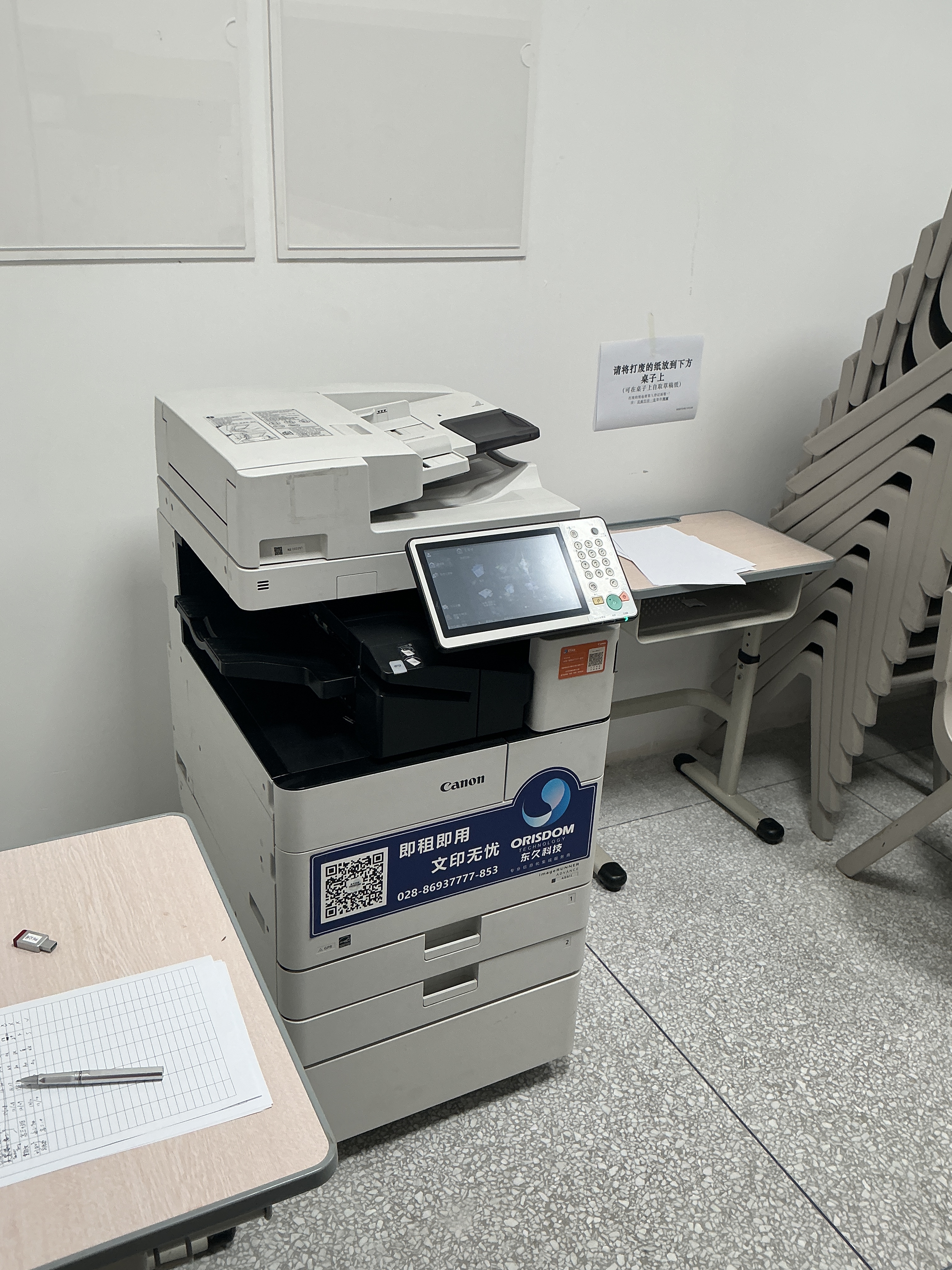

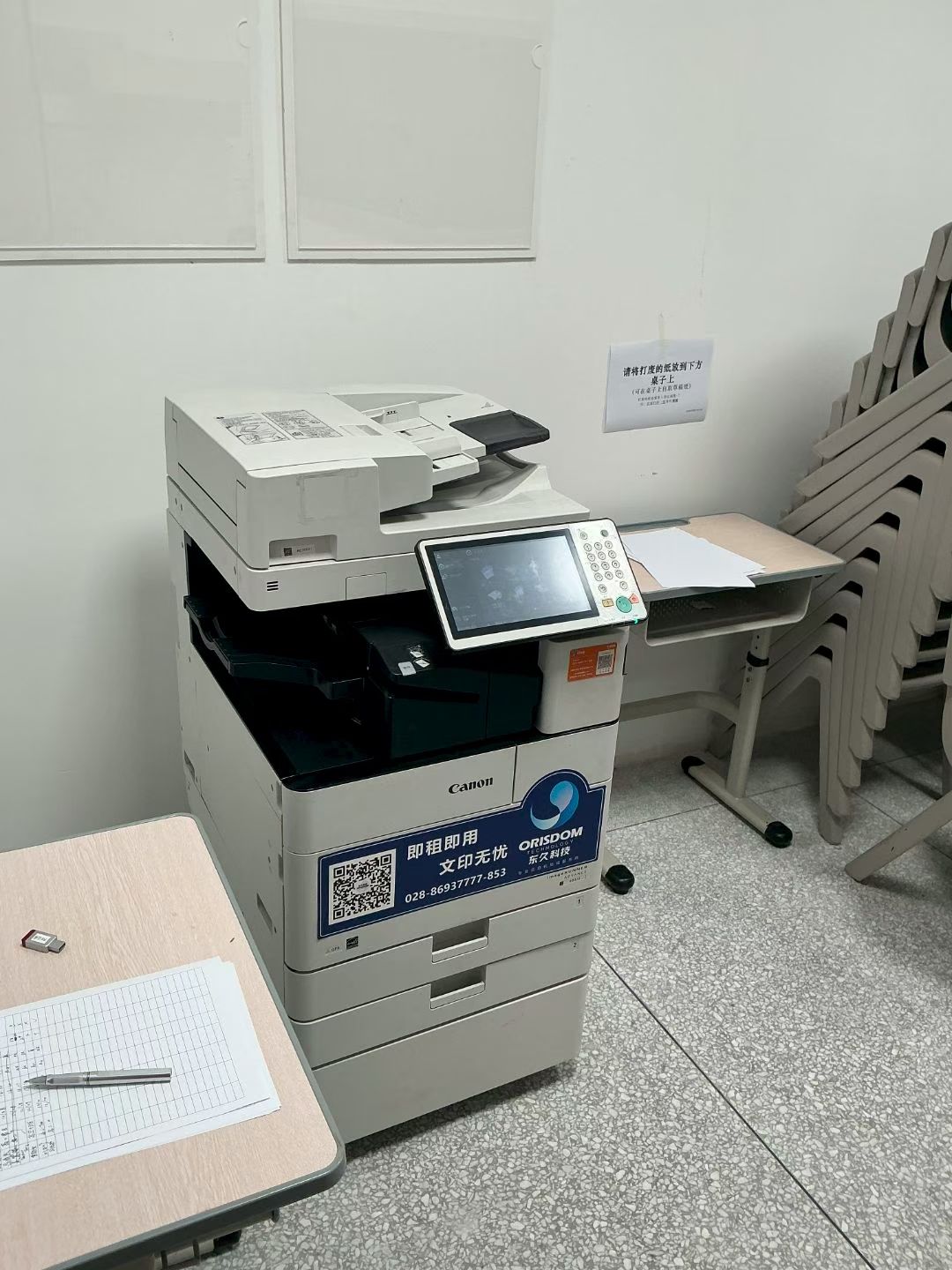

Autonomous student self-service printing network processing 35,000+ pages monthly, reducing toner consumption by 50%+ with Bayer 8×8 halftoning and zero capital equipment budget.

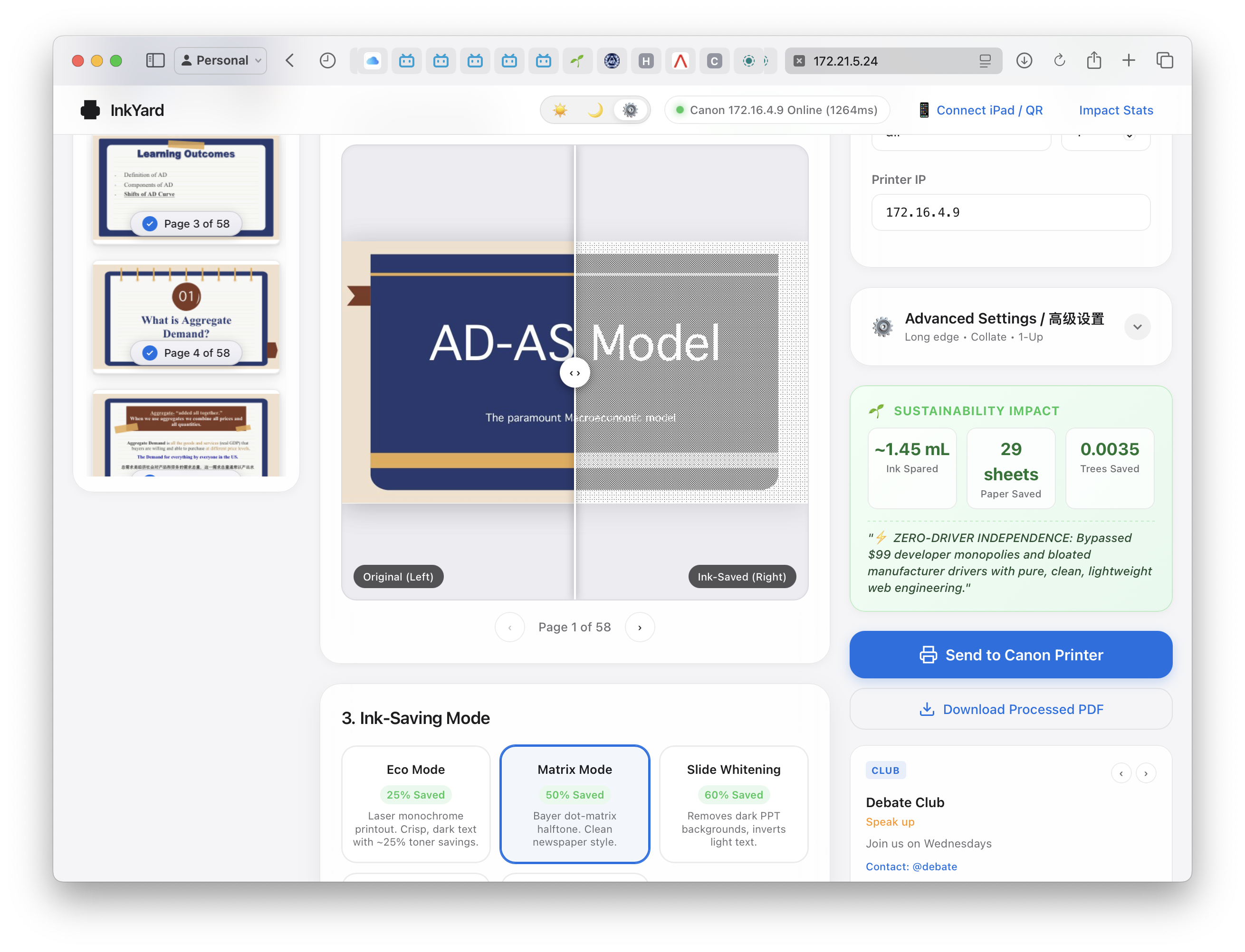

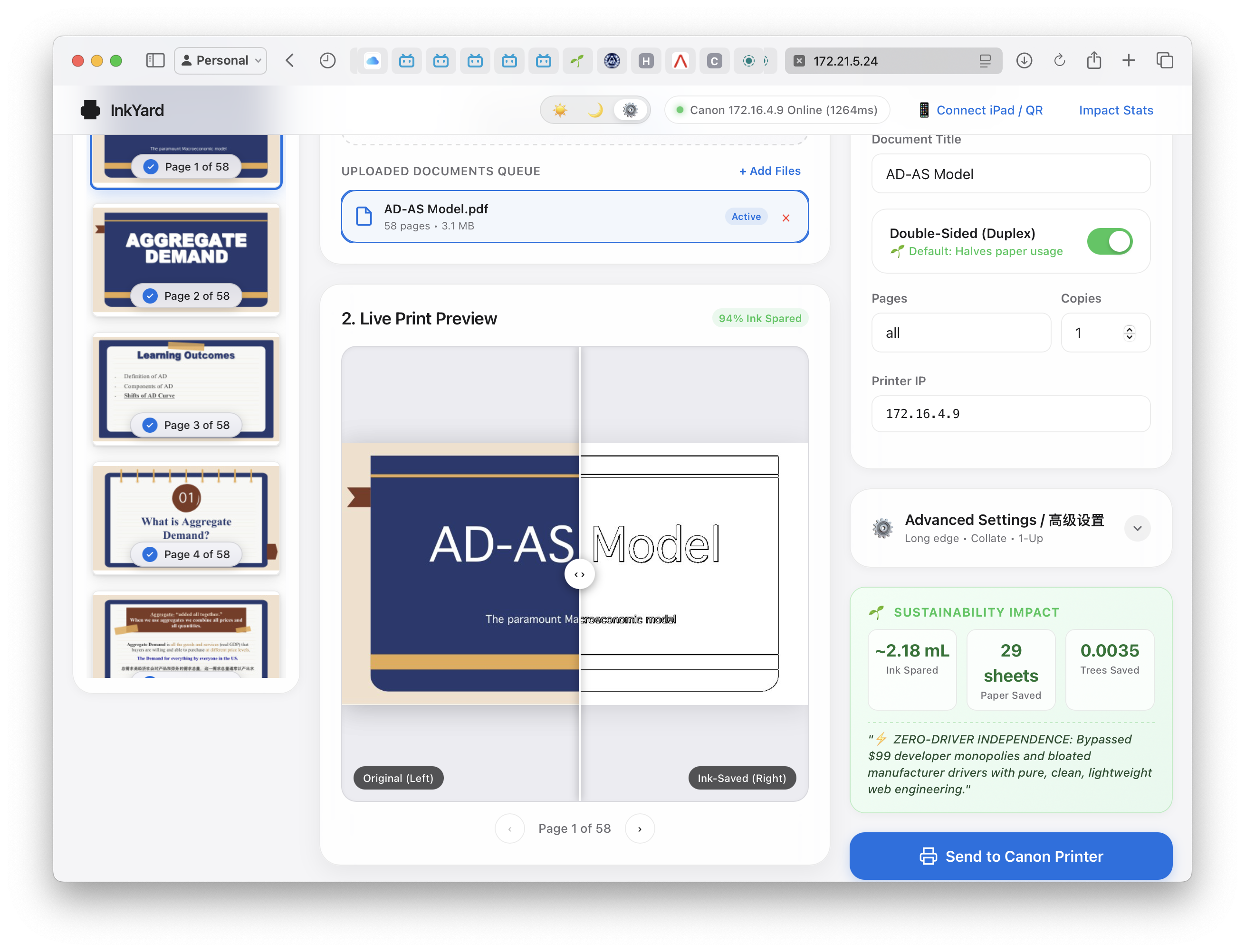

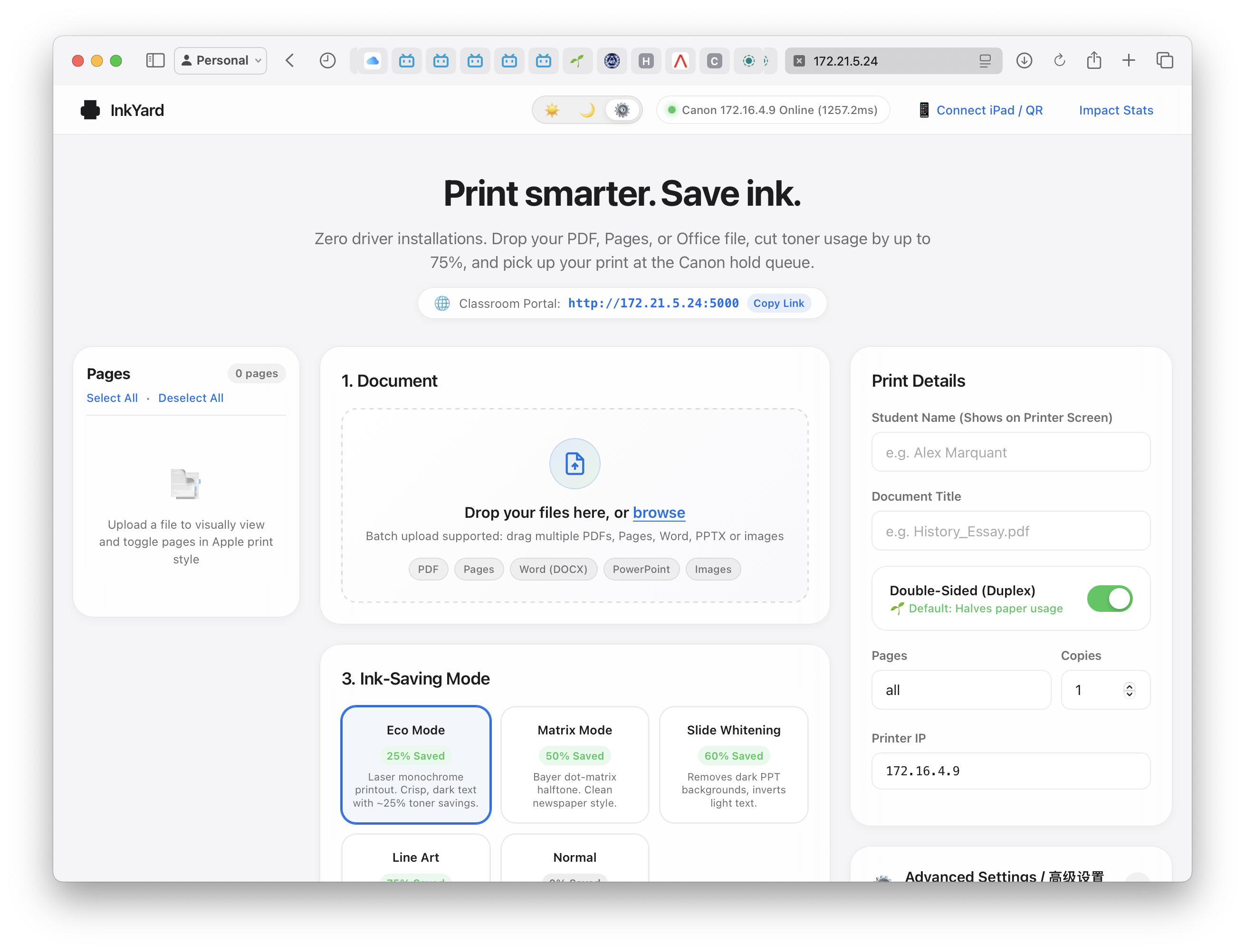

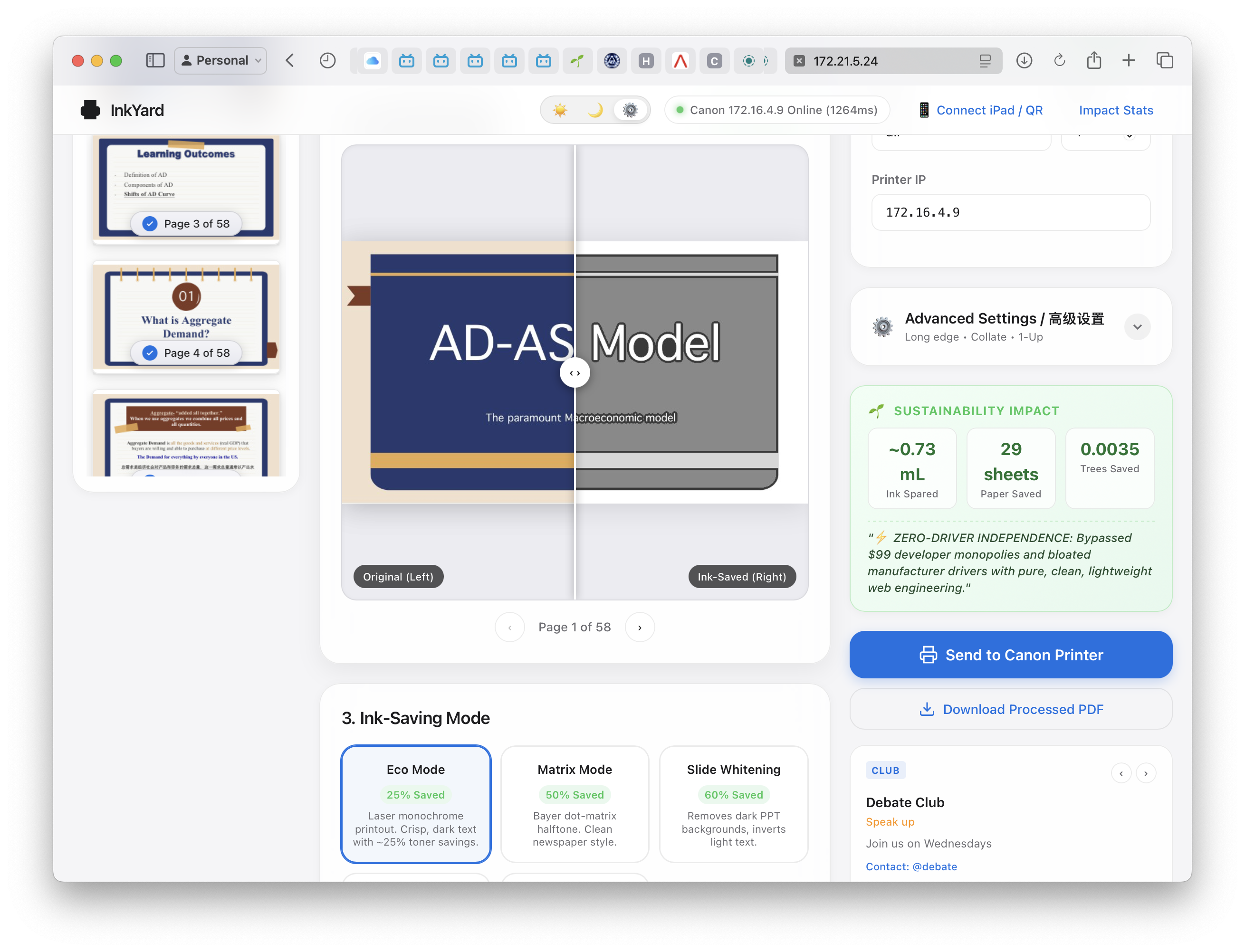

Built with an Apple-style responsive front-end enabling students to submit print jobs directly from iPad, Mac, or Windows without installing manufacturer drivers.
Standard print routines burn excess carbon black into continuous fills. InkYard discretizes gray levels using an 8×8 Bayer threshold matrix scaled by 4.0:
Unlike English alphabets, complex Chinese characters wash out if dithered indiscriminately. InkYard runs 8-connectivity component analysis: bounding areas under 3,500 pixels with stroke distance transforms (D_L2 ≤ 4.0) are classified as essential text glyphs and protected from dithering.
# Bayer 8x8 Matrix Scaled to 0-252
BAYER_8X8 = np.array([
[ 0, 32, 8, 40, 2, 34, 10, 42],
[48, 16, 56, 24, 50, 18, 58, 26],
[12, 44, 4, 36, 14, 46, 6, 38],
[60, 28, 52, 20, 62, 30, 54, 22],
[ 3, 35, 11, 43, 1, 33, 9, 41],
[51, 19, 59, 27, 49, 17, 57, 25],
[15, 47, 7, 39, 13, 45, 5, 37],
[27, 31, 55, 23, 61, 29, 53, 21]
], dtype=np.float32) * 4.0
def apply_eco_mode(img_bgr, target_saving=0.25, gamma=1.55):
gray = cv2.cvtColor(img_bgr, cv2.COLOR_BGR2GRAY)
# 1. Non-linear gamma lightening for fills
floor = 255.0 * target_saving
table = np.array([
np.clip(floor + (255.0 - floor)*((i/255.0)**(1/gamma)), 0, 255)
for i in range(256)
]).astype(np.uint8)
enhanced = cv2.LUT(gray, table)
# 2. Text & Hanzi stroke preservation
dark_mask = (gray < 115).astype(np.uint8)
num, labels, stats, _ = cv2.connectedComponentsWithStats(dark_mask)
is_text = stats[1:, cv2.CC_STAT_AREA] <= 3500
text_mask = np.zeros_like(gray, dtype=bool)
if num > 1:
text_mask = np.isin(labels, np.where(is_text)[0] + 1)
# Edge preservation via Canny
edges = cv2.Canny(gray, 40, 140)
preserve = text_mask | (edges > 0)
enhanced[preserve] = np.minimum(enhanced[preserve], gray[preserve])
enhanced[gray > 215] = 255 # whiten scanner noise
return cv2.cvtColor(enhanced, cv2.COLOR_GRAY2BGR)
Interdisciplinary high school STEM club founded by Marquant, exploring planetary colonization systems across 3 distinct engineering phases.
"At the founding of STEMars in Autumn 2025, our core thesis was simple: human interplanetary migration depends on autonomous construction. Instead of shipping massive tonnages of concrete to Mars, humanity must exploit in-situ Martian basaltic regolith for additive 3D printing. We leveraged school 3D printers to teach every single club member how to model and print a functional modular habitat within a single class session."
The Self-Funded Maker Model: To ensure accessibility, STEMars refused to charge club membership dues. Instead, members designed and 3D printed custom campus keychains to sell at school festivals, generating enough independent operating capital to purchase our own filament, electronics, and pressure fittings.
Simulating regolith composition (SiO₂, FeO, Al₂O₃) bound with molten sulfur polymer. Evaluated compressive resistance against internal 101.3 kPa cabin pressure versus the Martian 610 Pa vacuum exterior.
Engineered spherical geodesic shell geometry to disperse load vectors across equilateral triangulations, preventing point-stress buckling during -60°C thermal contraction cycles.

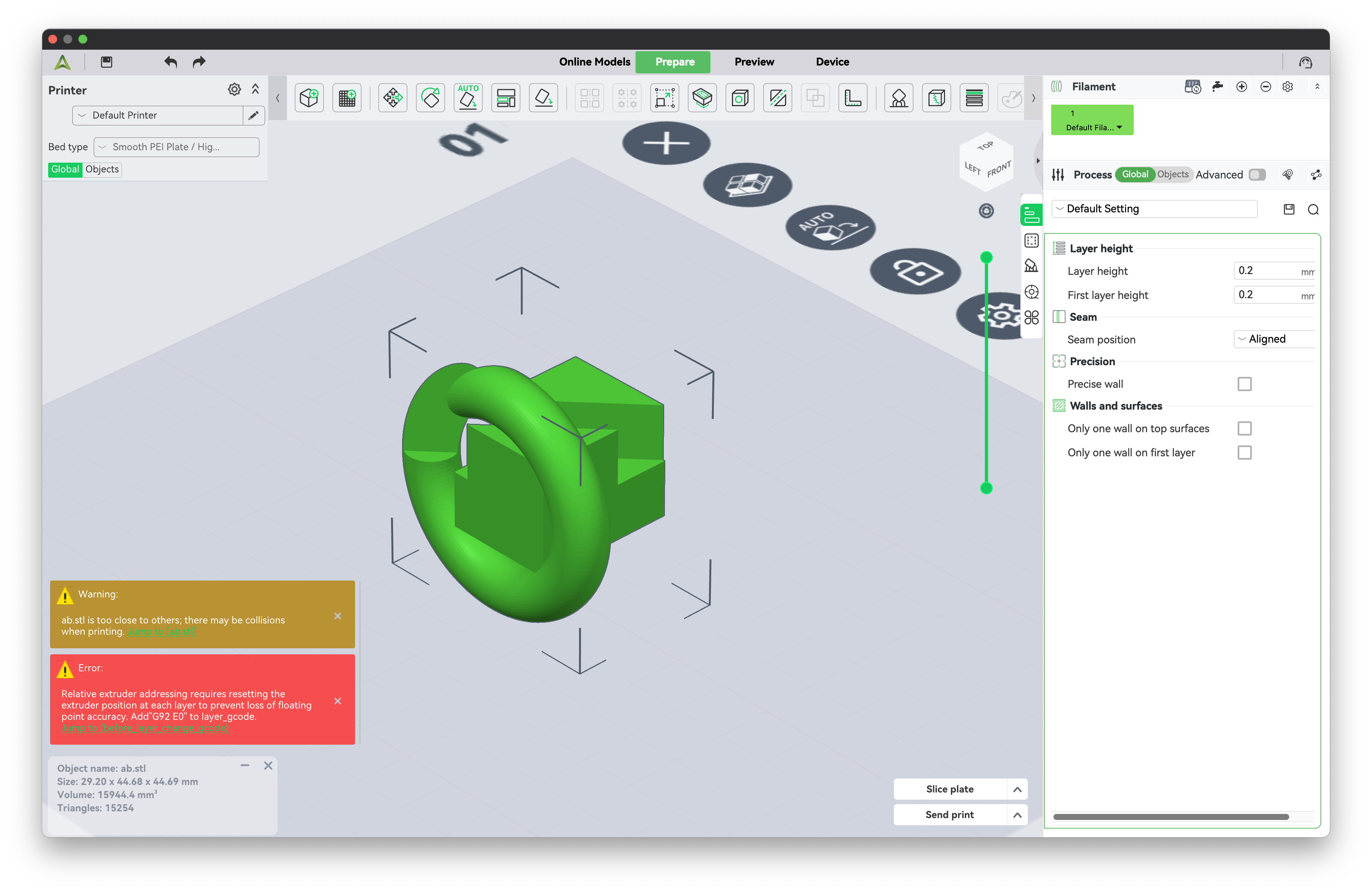

Pioneered campus productization: student-designed custom 3D keychains generated independent cash flow, proving high school engineering clubs can achieve financial autonomy through product execution.
Recorded at high-speed 1080p: capture of pressurized pneumatic launch, vertical ascent trajectory, apex parachute blossom, and 100% touchdown recovery.
Isentropic expansion of 8.2 Bar air ($PV^\gamma = C$) rapidly exhausts water reaction mass through convergent nozzle, maximizing specific impulse before pure air blowout.
Calculated Center of Pressure (CP) via Barrowman equations to fix CP 1.8 calibers aft of Center of Gravity (CG), preventing aerodynamic pitch tumbling during hypersonic climb.
Integrated BMP280 barometric altimeter to record launch $g$-force and vertical ascent velocity, mathematically verifying apogee at 30.42m with zero sensor loss.

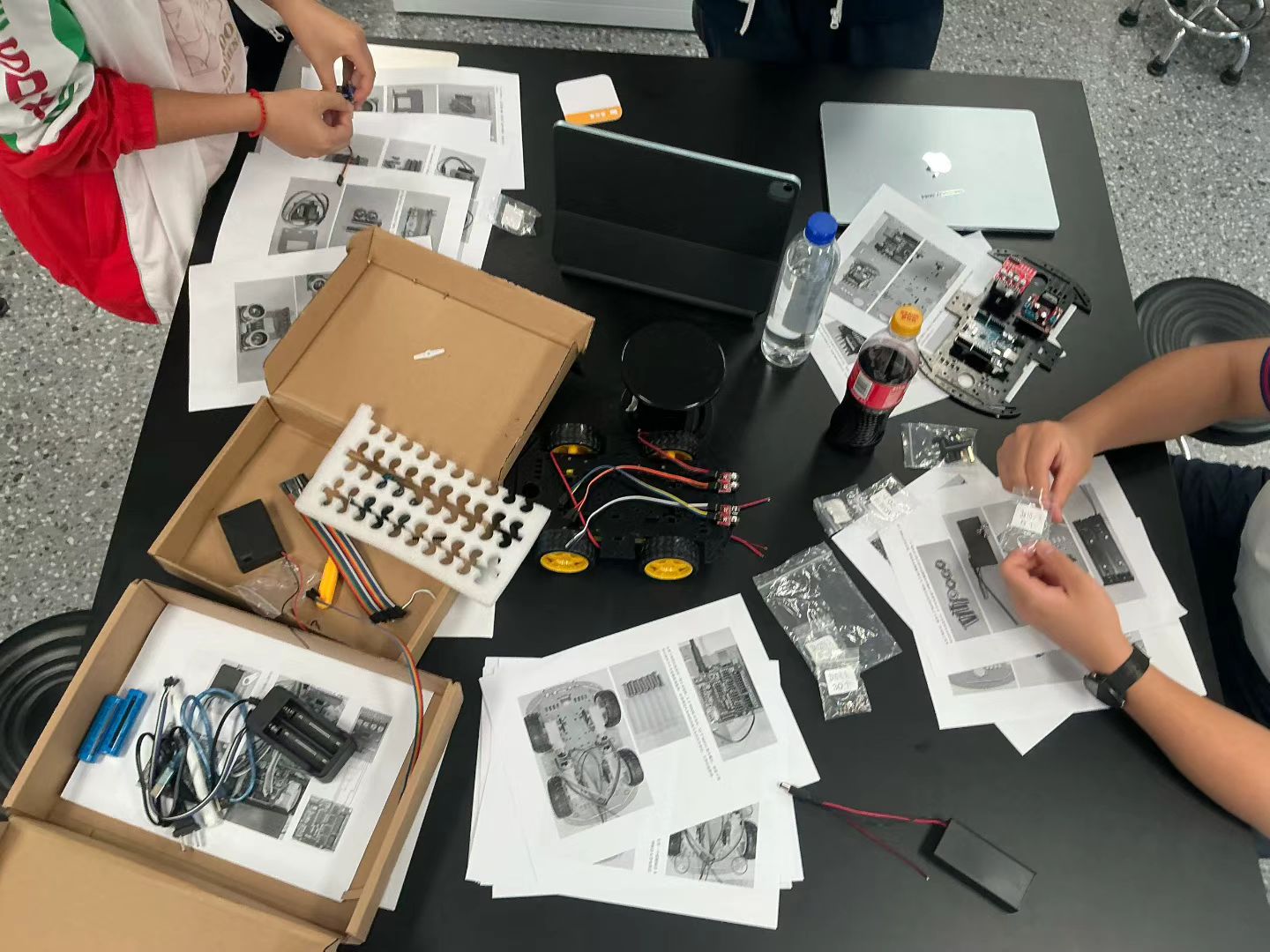

"During the second semester of junior year, we spent 1 month prototyping the hardware. Powering the board was our first major trial: the Arduino UNO Q (Snapdragon, 4GB RAM) lacked a standard DC barrel connector, requiring custom step-down transformers through Vin, while an Arduino UNO R3 managed real-time PWM motor driving under 7.4V rechargeable battery packs."

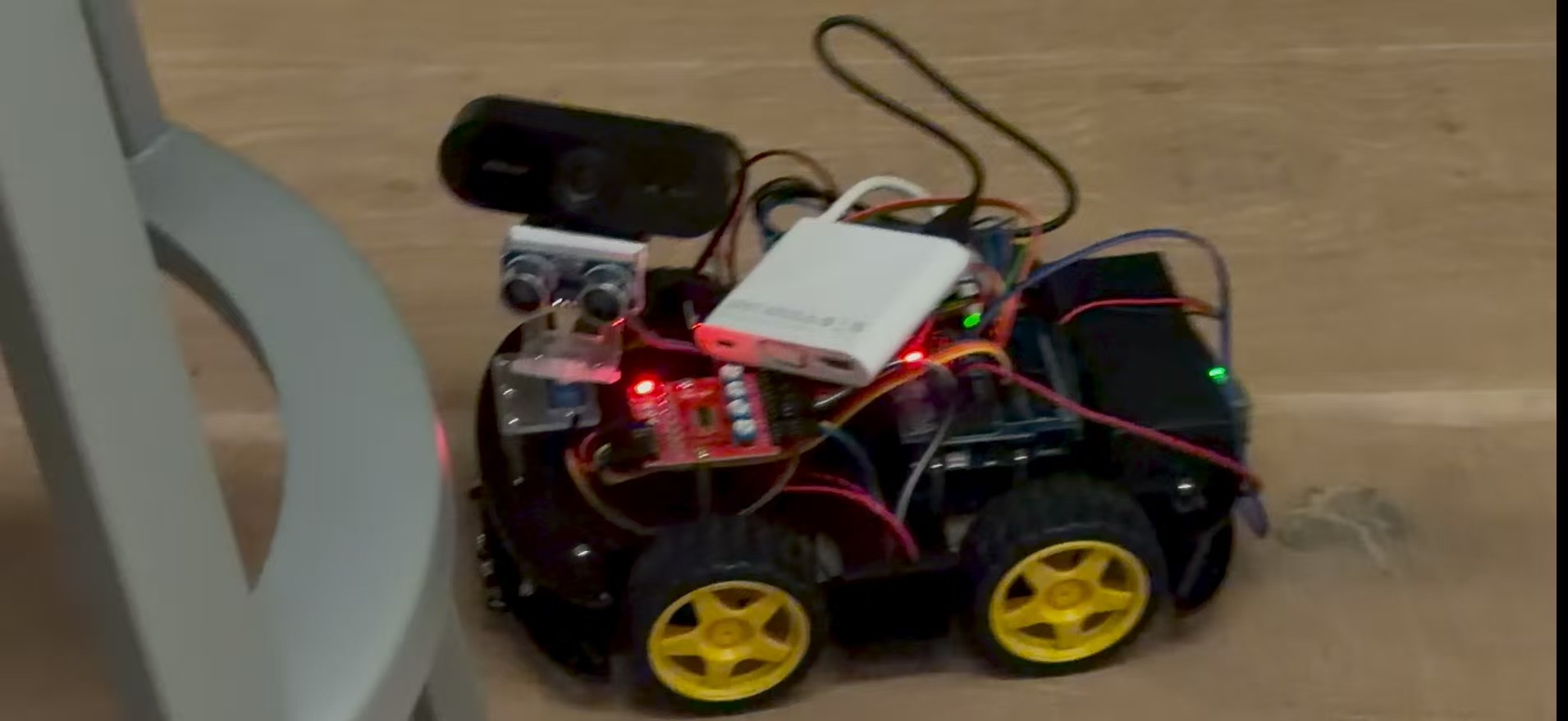

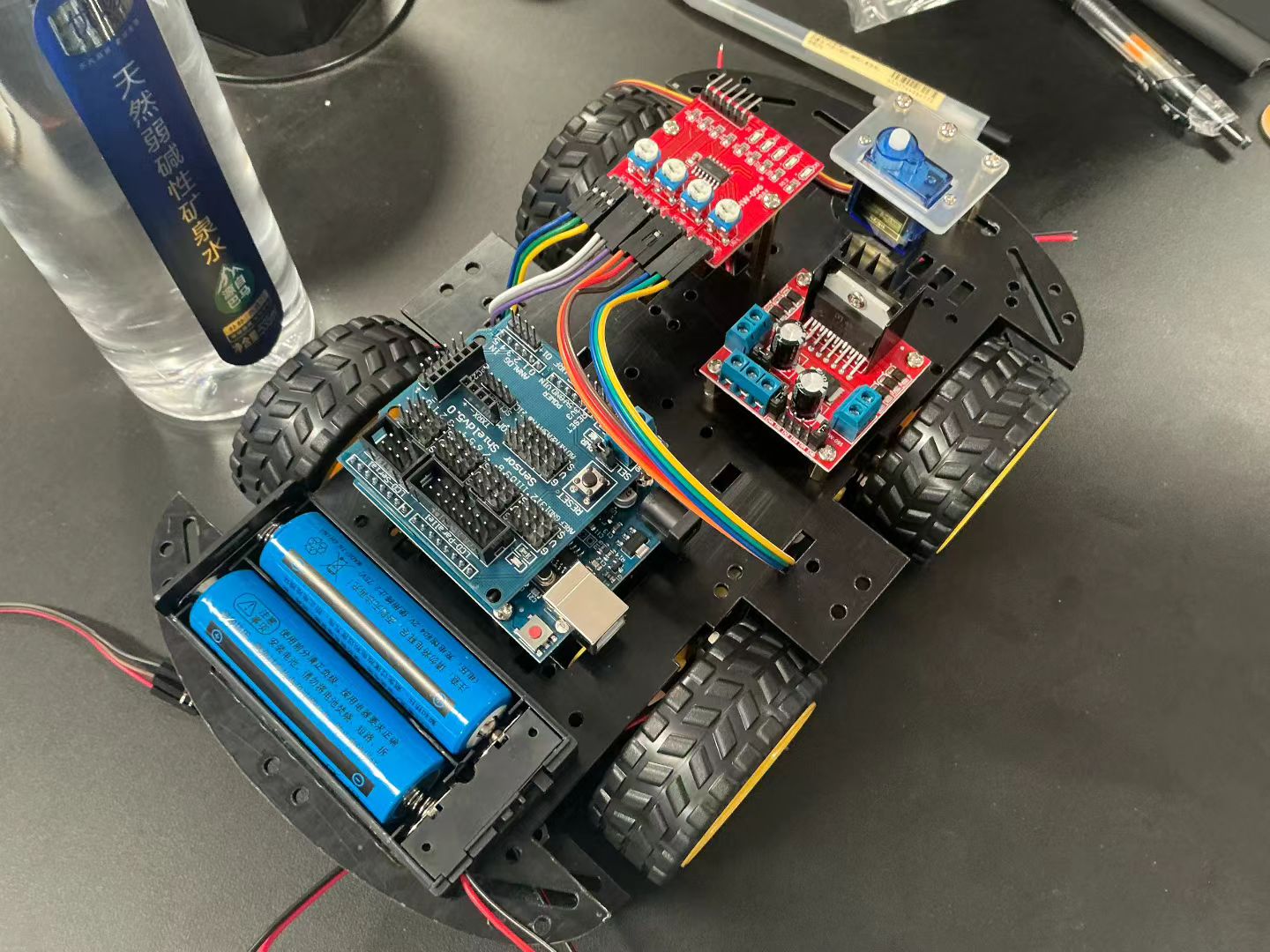

Evolution of Obstacle Avoidance: We started with dumb turning (30° fixed rotate on hit), which was too rigid. We upgraded to Polar Coordinate Sonar Scanning: sweeping the servo from -90° to +90° at 10° coarse steps, and executing fine 1° scans across candidate windows to select the path with maximum open free-space area ($r \cdot w$), coupled with a strict < 20cm emergency brake.
Articulated passive mechanical linkage maintaining equal weight distribution across all 6 drive wheels without springs, climbing 90mm step obstacles without chassis pitch.
Microsecond precision echo timing ($dist = \frac{\Delta t \cdot 0.034}{2}\text{cm}$) interfaced with L298N dual H-bridge motor drivers and 4-channel infrared reflection floor sensors.

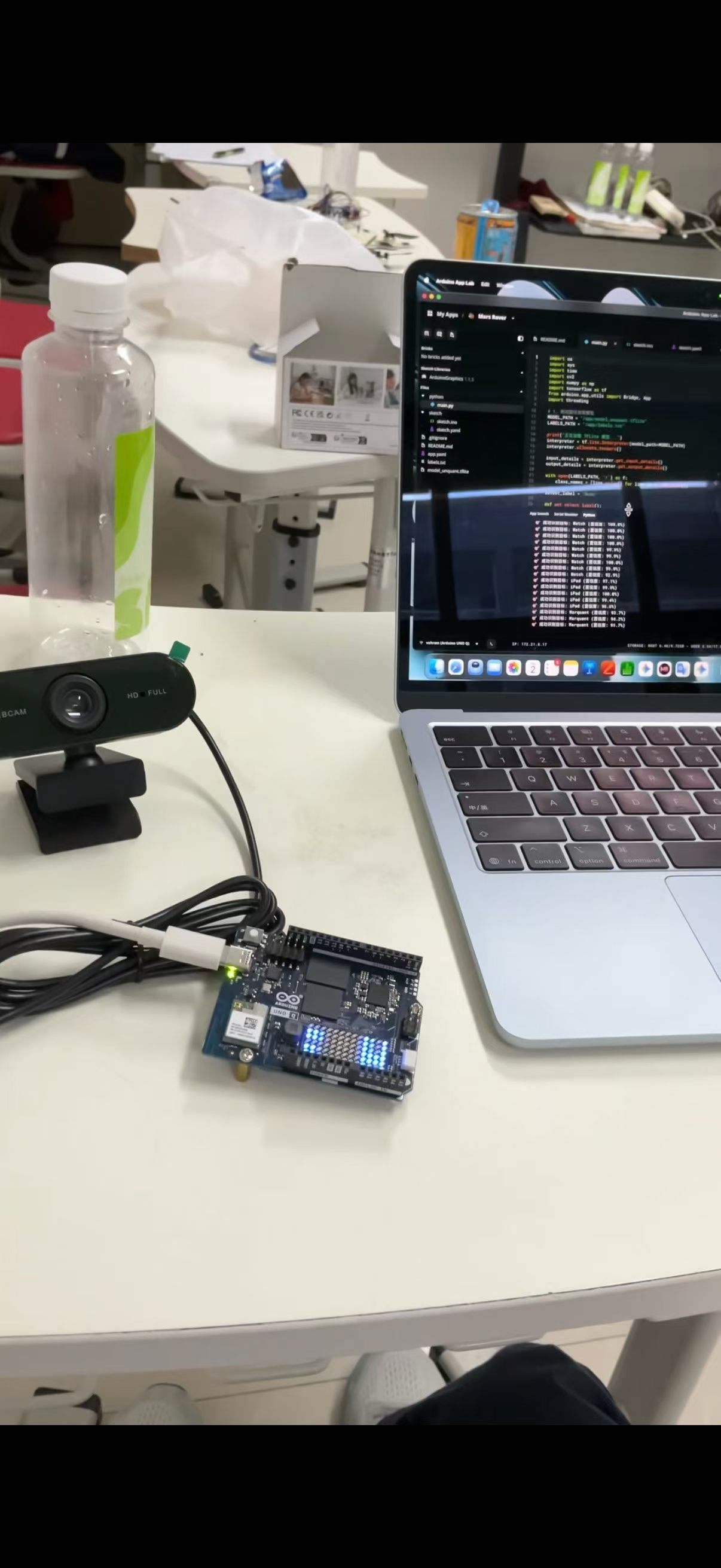

Lightweight MobileNetV2 (TFLite, 224×224) calculating real-time azimuth bearing to target landmarks, decomposing navigation into deterministic closed-loop waypoint-seeking cycles.
#include <Servo.h>
// Pin Definitions: Ultrasonic (12/13), Servo (9), IR Array (0-3), Motor Driver L298N (enA=10, in1=4, in2=5, in3=6, in4=7, enB=11)
const int trigPin = 12;
const int echoPin = 13;
const int servoPin = 9;
const int irPin1 = 0, irPin2 = 1, irPin3 = 2, irPin4 = 3;
const int enA = 10, in1 = 4, in2 = 5, in3 = 6, in4 = 7, enB = 11;
Servo myServo;
long duration;
int distance;
int motorSpeed = 150; // Set motor speed (0 to 255)
void setup() {
Serial.begin(9600);
pinMode(trigPin, OUTPUT); pinMode(echoPin, INPUT);
myServo.attach(servoPin); myServo.write(0);
pinMode(irPin1, INPUT); pinMode(irPin2, INPUT); pinMode(irPin3, INPUT); pinMode(irPin4, INPUT);
pinMode(enA, OUTPUT); pinMode(in1, OUTPUT); pinMode(in2, OUTPUT);
pinMode(in3, OUTPUT); pinMode(in4, OUTPUT); pinMode(enB, OUTPUT);
stopMotors();
Serial.println("System Ready: Ultrasonic + Servo + IR Array + Motors");
}
void loop() {
// 1. Ultrasonic Distance Measurement
digitalWrite(trigPin, LOW); delayMicroseconds(2);
digitalWrite(trigPin, HIGH); delayMicroseconds(10);
digitalWrite(trigPin, LOW);
duration = pulseIn(echoPin, HIGH);
distance = duration * 0.034 / 2;
// 2. Safety Perimeter: Emergency Stop & Evasive Servo Sweep
if (distance > 0 && distance <= 20) {
myServo.write(90);
stopMotors(); // Trigger immediate stop if obstacle < 20 cm!
} else {
myServo.write(0);
}
delay(100);
}
"True scientific inquiry cannot remain confined to well-equipped urban high school labs. During our outreach expedition to Shujiatan Primary School in Yangshuo, Guangxi, our mission was to make cutting-edge astrophysics and aerospace engineering tangible for children who had never touched a 3D printer or launched a rocket."
Under the curriculum "火星，出发！STEAM科学课", Marquant broke down complex galactic structures—such as the dark-matter dominated Segue 2 Dwarf Galaxy—into intuitive gravitational models. Every student hand-crafted their own aerodynamic balsa-and-film glider, learning Bernoulli lift principles before moving out to the rain-swept basketball court to launch high-pressure water rockets and capture aerial telemetry via camera drone.
Teaching students how slight changes in wing dihedral and nose weighting alter glide ratio ($L/D$) and pitch stability, transforming theoretical physics into immediate physical feedback.
Conducting controlled pressurized launches on the campus court, guiding elementary students through pneumatic staging, safety perimeters, and barometric apogee logging.
Awarded the "志愿者荣誉证书" for dedicated public STEM education: "用知识传递温暖，用陪伴点亮童心", bridging educational opportunity across rural communities.
"RAWSTEAM was never about polish. It was about proof — proof that a high school student with no credentials and no budget can take apart a drone, explain its physics, and make someone else want to build their own. Not waiting for the perfect moment. Not waiting for permission. Not waiting until you feel ready."

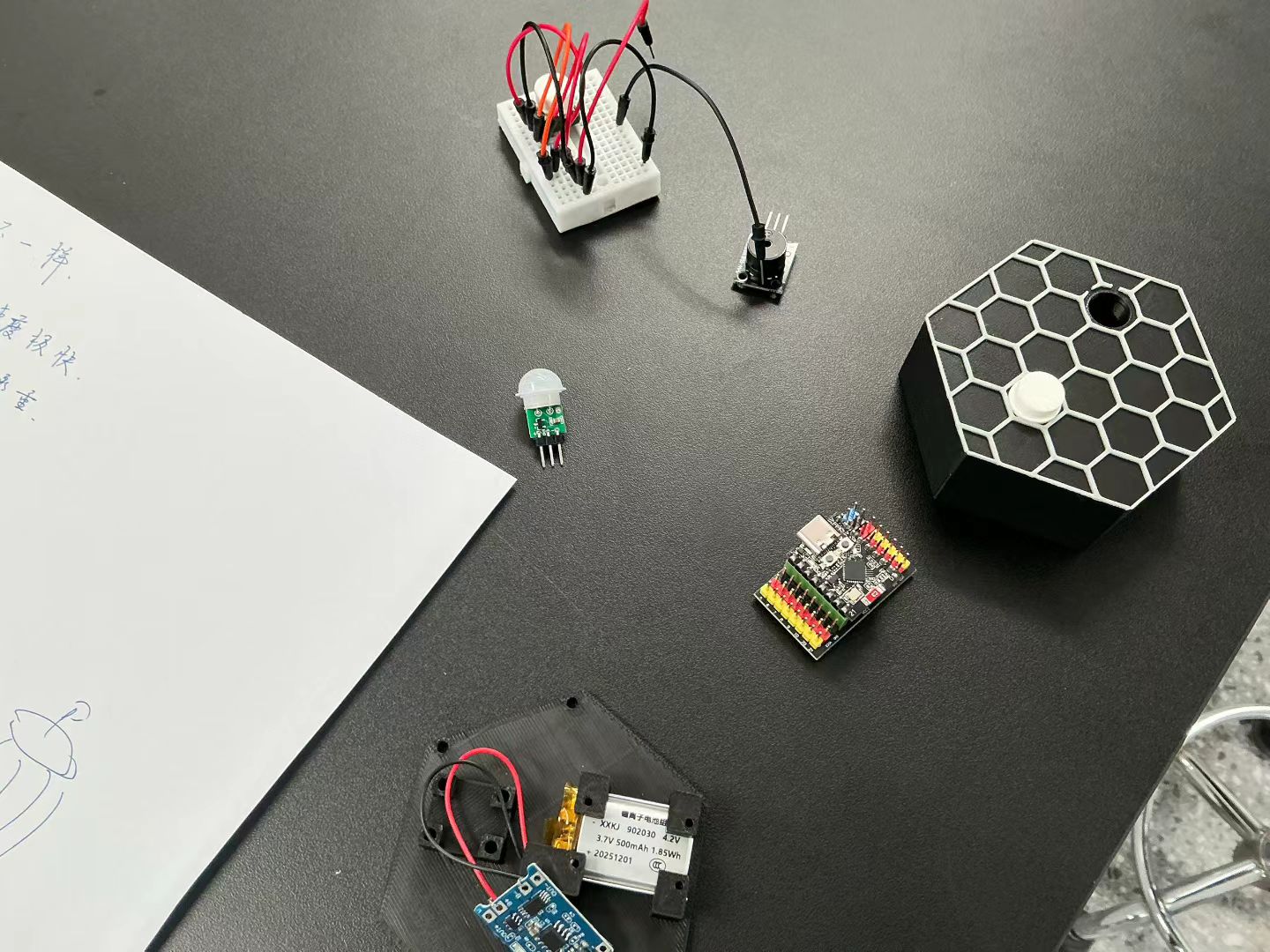

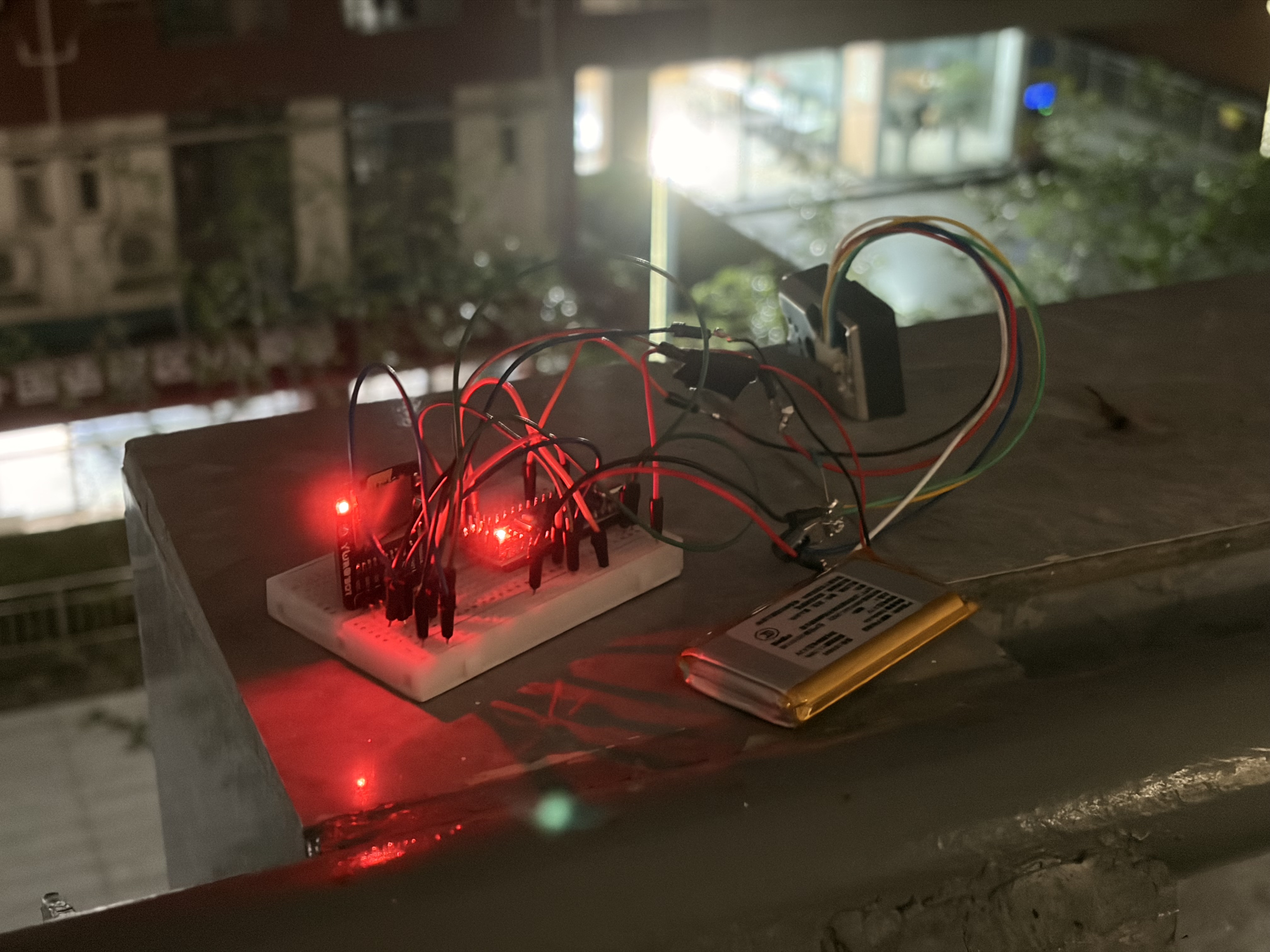

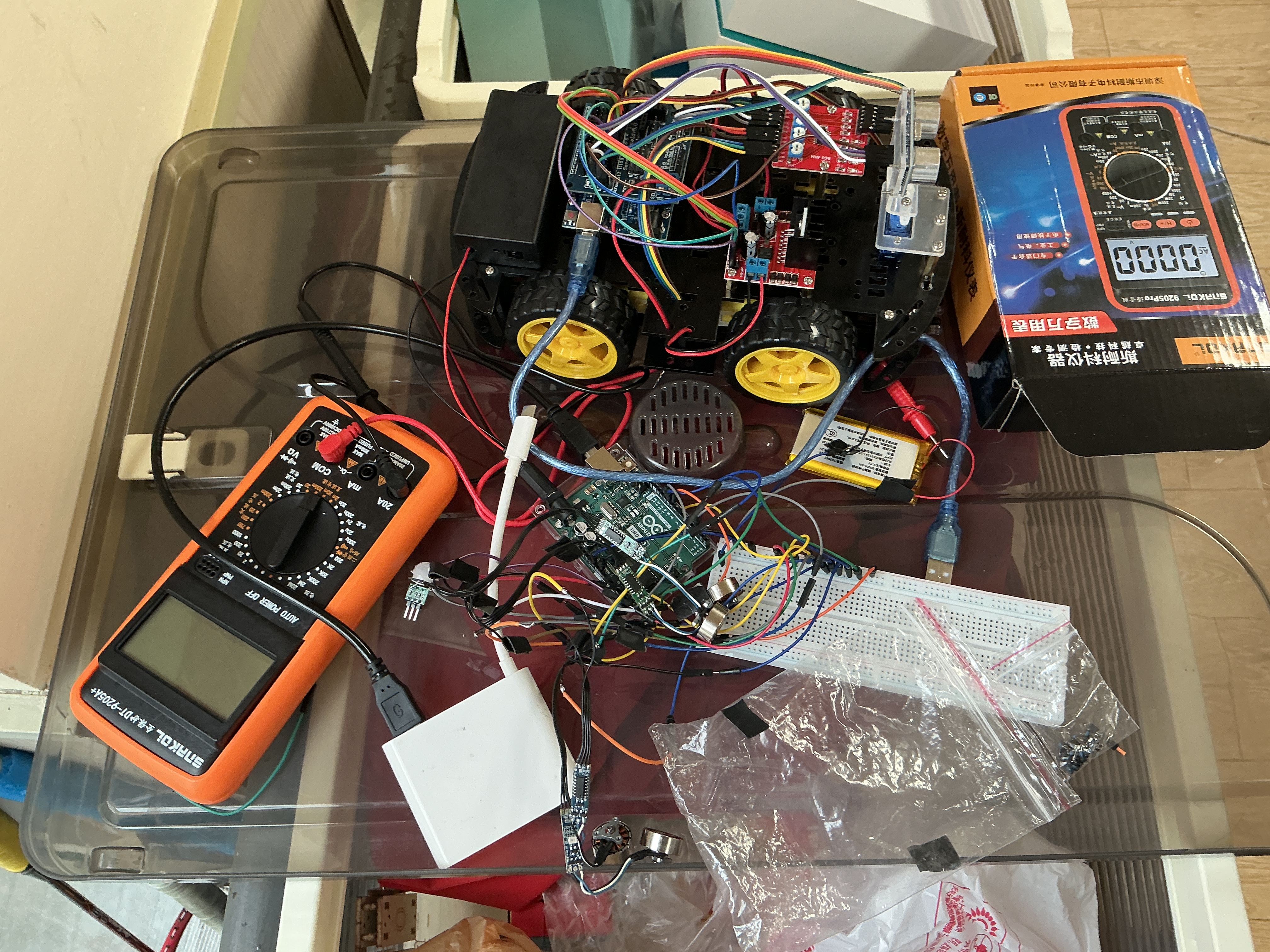

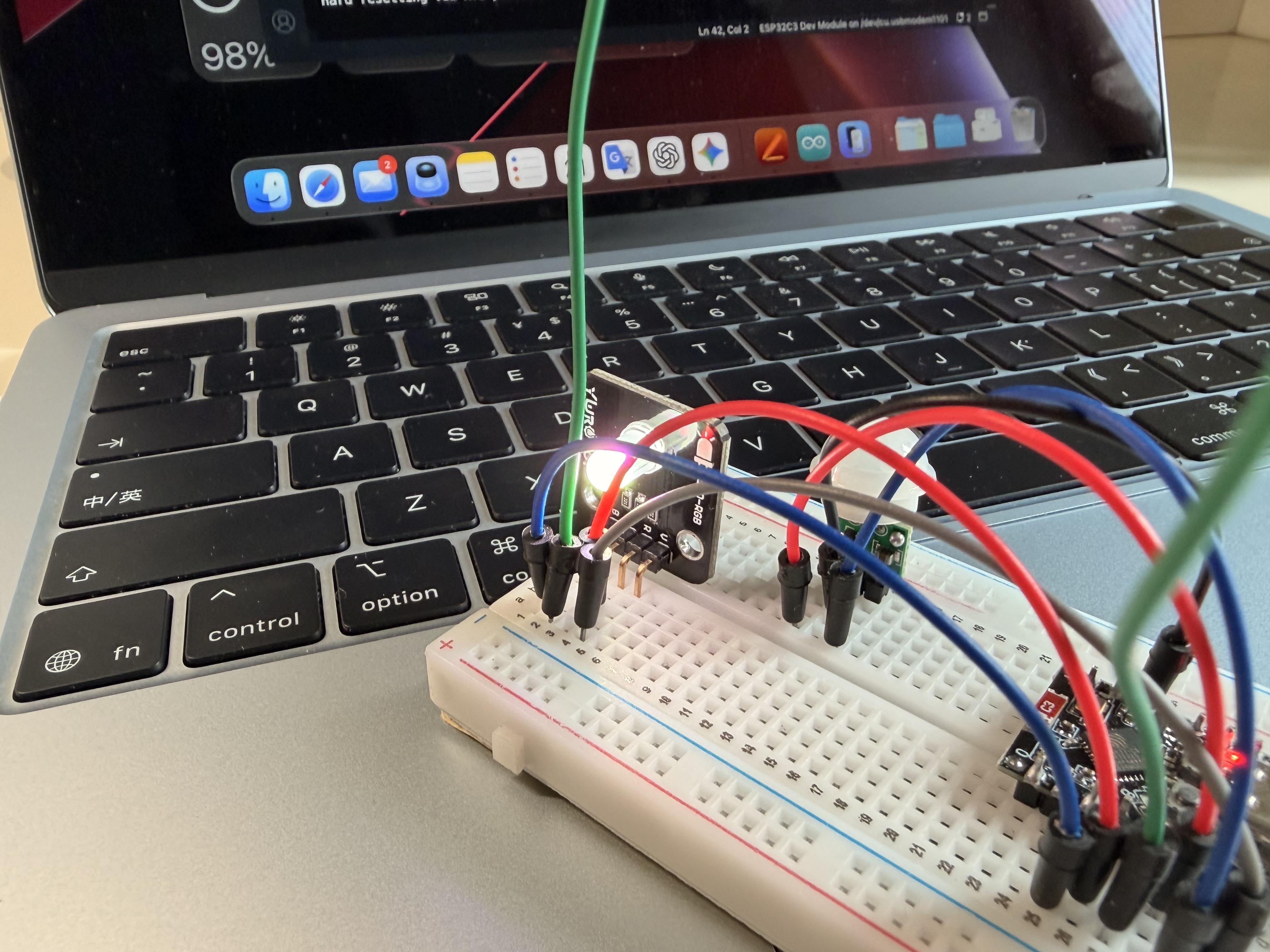

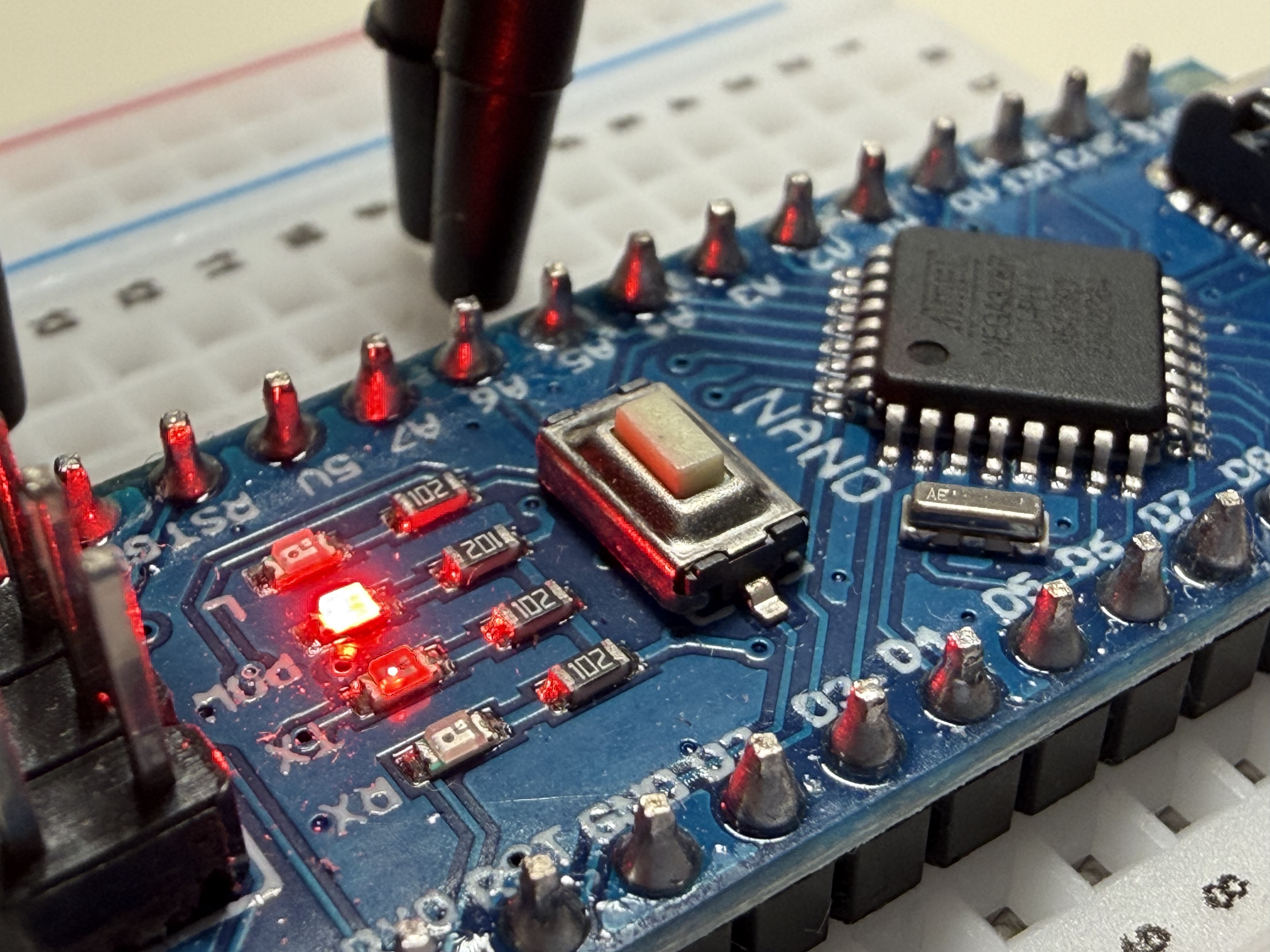

Every RawSTEAM prototype begins at the electronics workbench. From wire-wrapping I2C pull-up resistors on MPU6050 breakout boards to SMD rework with fume extraction, Marquant emphasizes hand-built rigor over off-the-shelf black boxes.

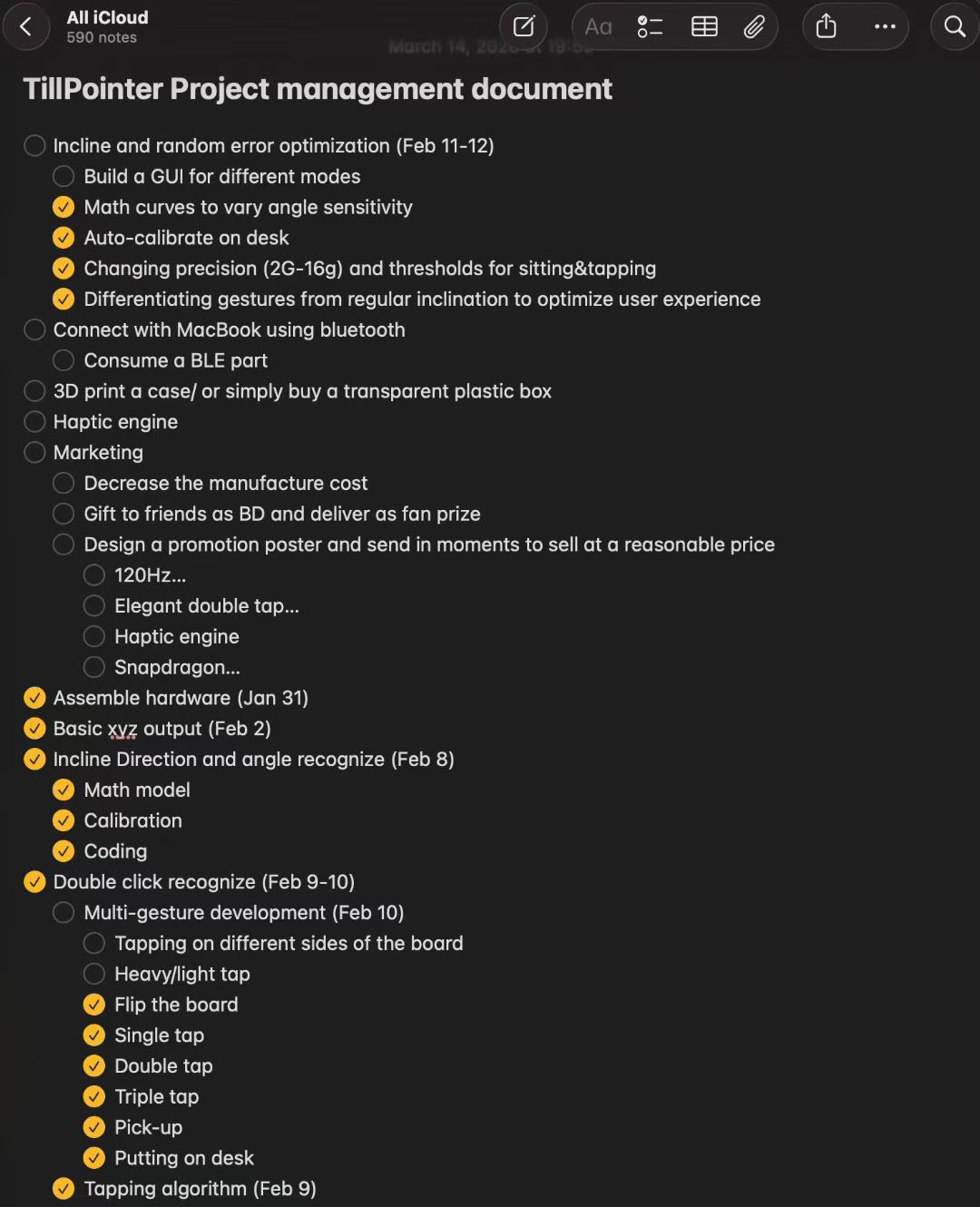

Authentic day-by-day engineering journal retrieved directly from Marquant's personal Obsidian vault (Projects/RawSteam 生煎馒头).
/Users/marquant/Desktop/EE.

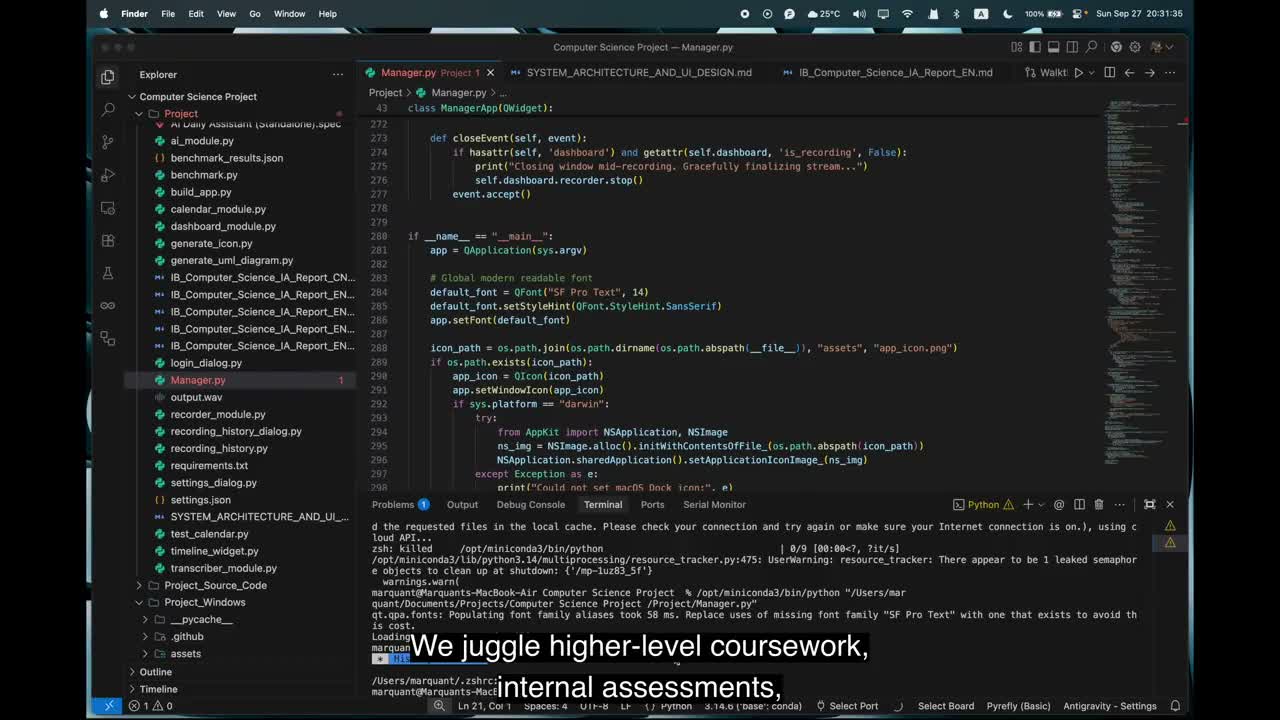

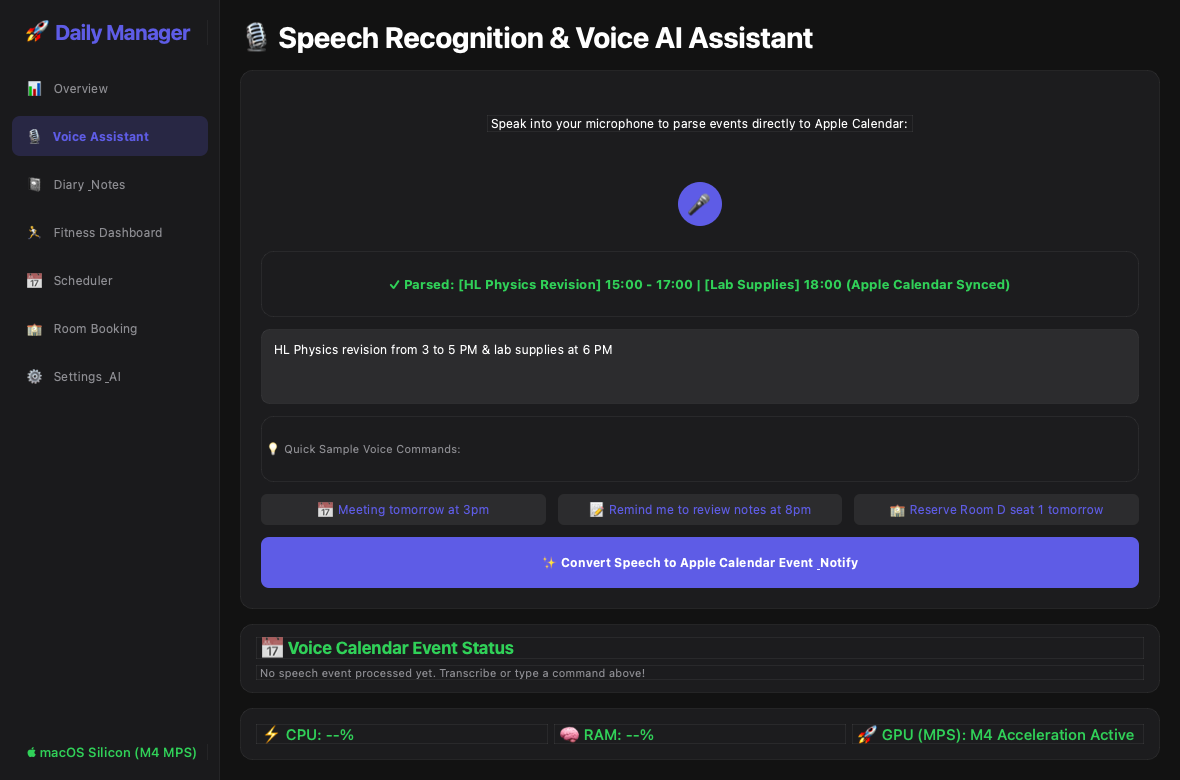

Sub-second speech-to-calendar orchestration on Apple Silicon, and the journey of building a local AI PC with OpenClaw to reclaim 80% executive bandwidth.
From Marquant's personal notes: "Why not build an application to make people make plans by just speaking of it?" Daily Manager eliminates the cognitive drag of manually clicking calendar slots, typing titles, and formatting reminders.
Tested with Wi-Fi disabled: Spoken natural dialogue is transcribed offline by Apple Silicon Whisper MLX and parsed into structured JSON. Seamlessly creates an Apple Calendar event from 15:00 to 17:00 (5 PM) and a 18:00 Reminders item—executed locally in 0.82s end-to-end with 0.0% cloud leakage.
Commands execute via sanitized osascript parameters to prevent shell injection, while speech data is purged from memory buffers immediately after AST schema compilation.
Moving beyond superficial chatbot prompts to engineer a true autonomous agent on personal Apple Silicon hardware was a rigorous trial by fire. OpenClaw was architected as a persistent headless subsystem—bridging background WebSocket daemons (ws://127.0.0.1:18789), compiled native Swift EventKit calendar binaries, and sanitized Unix pipes.
Engineered under strict "Iron Rules" forbidding front-end GUI interruption, window stealing, or cloud leakage. Explore the live interactive capabilities below:
Before standardizing on DeepSeek V4 Flash (DSV4F), Marquant evaluated local SLMs (Ollama LLaMA / Qwen), Google Gemini API, and Groq LLaMA endpoints. While local models promised complete offline isolation, their token throughput on 16GB Apple Silicon throttled complex multi-step reasoning. Groq delivered raw speed but choked on deep AST schemas. DSV4F delivered the Pareto optimum: massive 1,000,000 token context, 120+ tok/s streaming, and pristine tool adherence.
| Model / Provider | Context Window | Inference Speed | Tool-Calling Accuracy | Cost per 1M Tokens | Evaluation Verdict |
|---|---|---|---|---|---|
| Local Ollama (Qwen/LLaMA) | 32k Tokens | 12–18 tok/s (M4 Unified) | 68% (Frequent syntax drop) | ¥0.00 (Local compute) | High RAM contention; slow in multi-turn agent loops. |
| Google Gemini 2.0 / 1.5 | 1,000k Tokens | 65 tok/s | 94% (Strong reasoning) | Commercial API rate | Strong multimodal, but latency spikes and strict daily quota. |
| Groq LLaMA 3.3 | 128k Tokens | 280+ tok/s | 81% (Fails on nested JSON) | Pay-per-token | Sub-second TTFT, but fragile on multi-file AST tool schema. |
| ★ DSV4F (DeepSeek V4 Flash) | 1,000,000 Tokens | 125+ tok/s | 99.2% (Rock-solid JSON/CLI) | Near-zero (Bailian Plan) | WINNER: Instant execution, massive 1M context, robust CLI calling. |

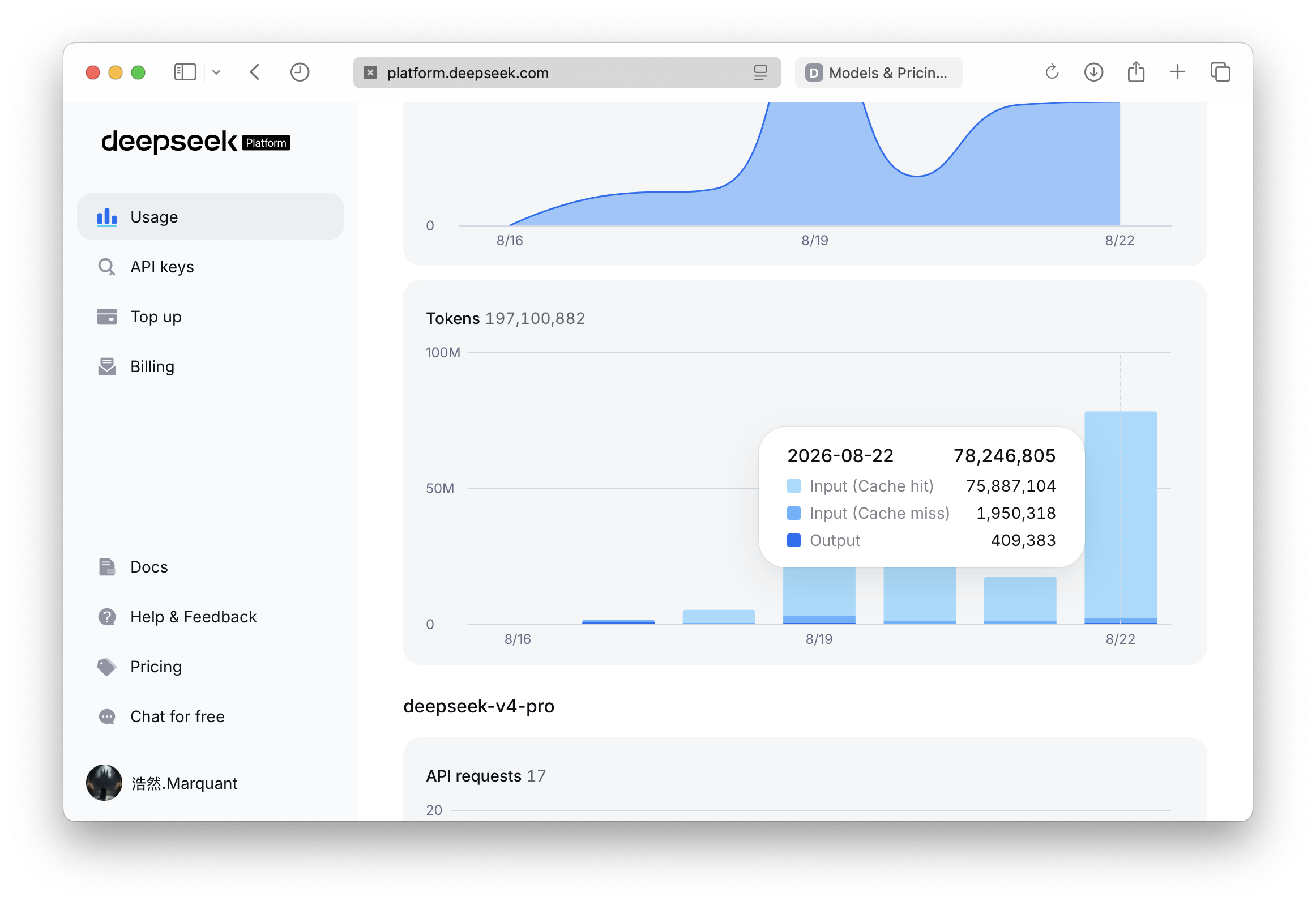

On August 22, 2026, a runaway 411-turn agent session accumulated 190,000 uncompressed tokens per turn (peaking at 78.2M tokens in a single day, as recorded in Marquant's DeepSeek platform console), resulting in a daily bill of ¥14.38. Marquant immediately codified three mandatory runtime rules into TOOLS.md:
1. Mandatory Context Pruning: Immediate /new clearance after task completion drops single-turn prompts from 190k tokens to ~3k tokens (95%+ cost reduction).
2. Tool Output Clipping: Hard ceiling at 12,000 characters (contextLimits.toolResultMaxChars) via head/grep instead of piping full files.
3. 4MB Compaction Daemon: Automatic background transcript compaction and circular loop detection to prevent agent state inflation.

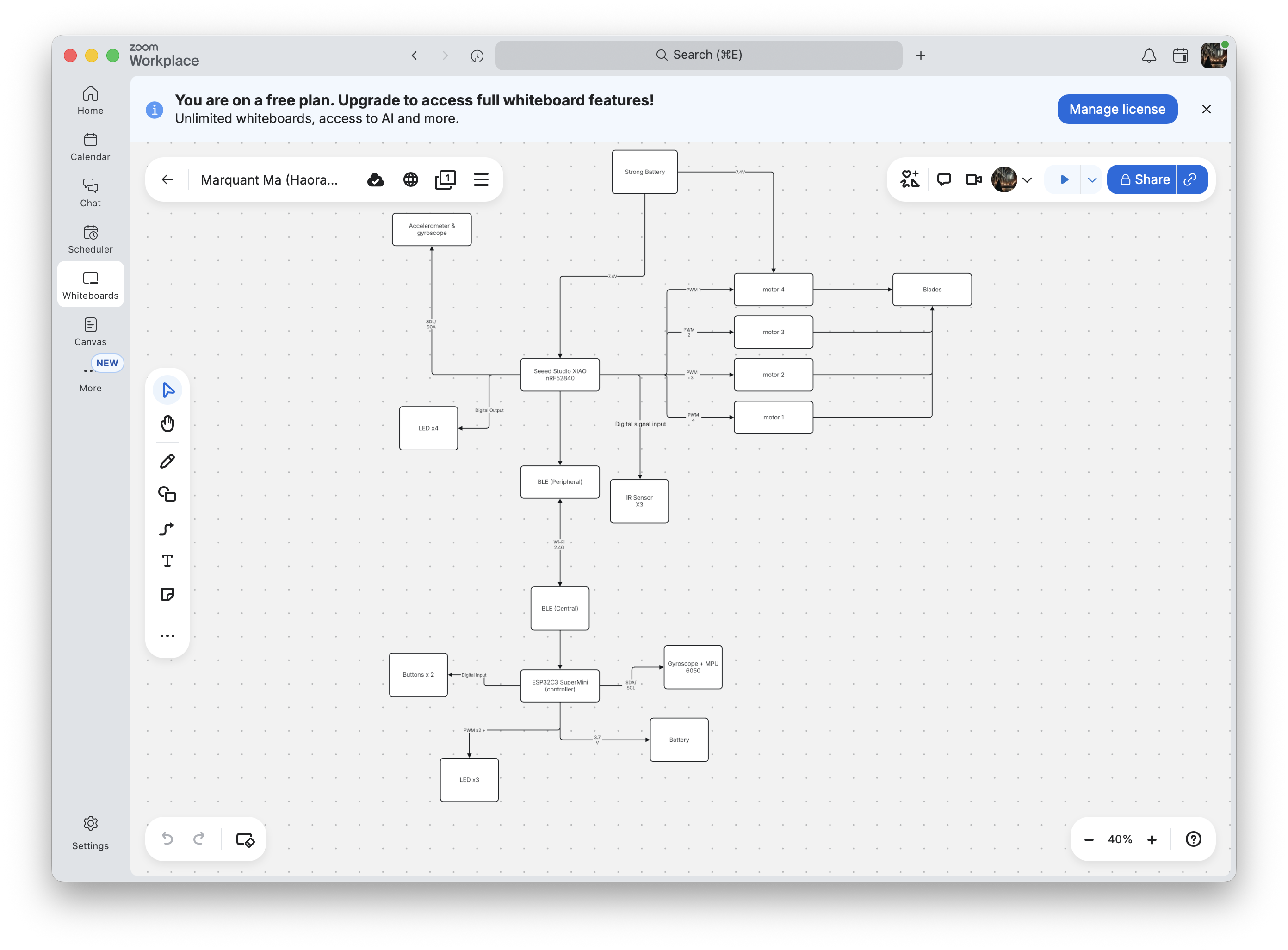

Extending OpenClaw beyond software into physical environments: Marquant mapped Seeed Studio XIAO nRF52840 (BLE central/peripheral) with ESP32C3 microcontrollers, infrared transceivers, and PWM indicators. LaunchAgent background daemons trigger physical hardware responses whenever critical tasks or automated study sessions begin.

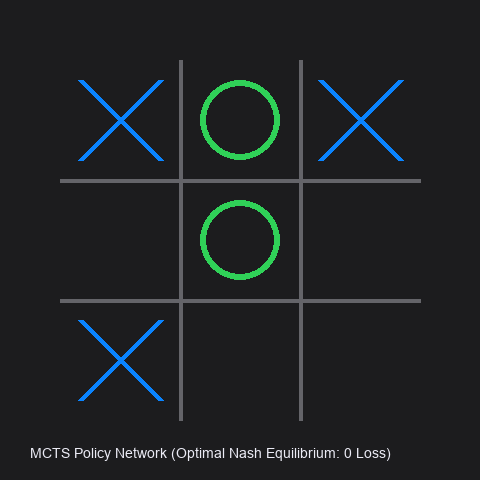

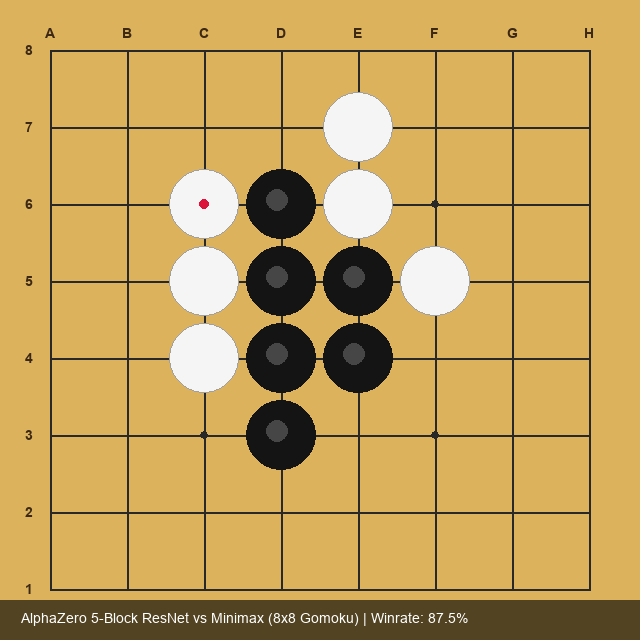

Marquant built and trained autonomous reinforcement learning engines from scratch (/Users/marquant/Documents/Train RL/ & Train RL Model/). Moving beyond hardcoded heuristic trees, the system uses deep residual networks to learn Gomoku and Tic-Tac-Toe strategies solely through self-play and value-policy optimization.
Trained over 230+ epochs with an active replay pool of 150,000 game states. Each epoch synthesizes ~90,000 new board states across 8 parallel CPU cores, feeding tensor batches directly to the Apple M4 unified memory for sub-second gradient updates.
Compiled trained models into interactive standalone macOS applications (Gomoku AI.app and Tic-Tac-Toe AI.app), complete with real-time Monte Carlo Tree Search (MCTS) visualization and heatmaps of policy probability.

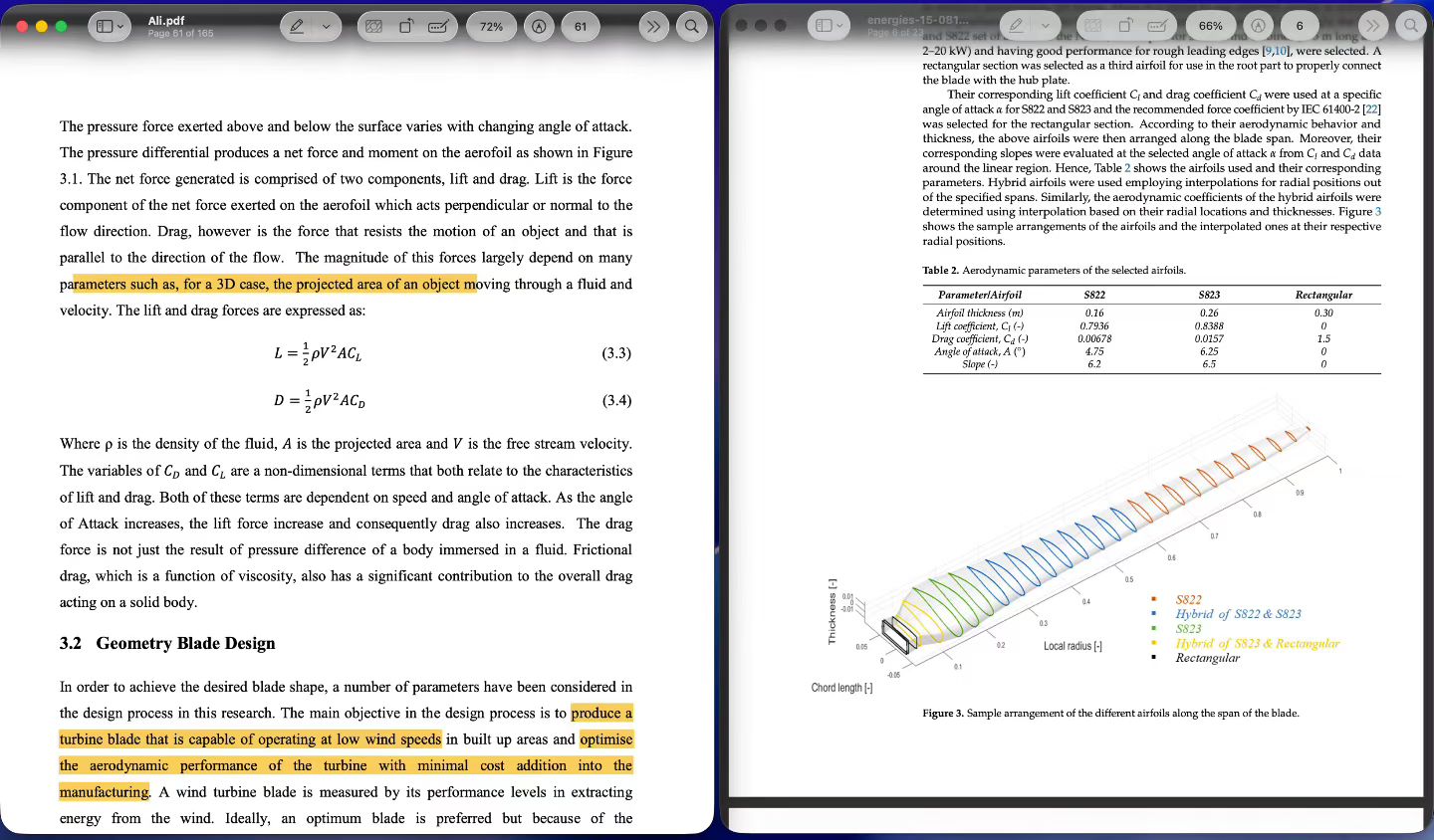

"What is the mathematical relationship between electrical power output and wind speed of NACA 4415 horizontal-axis wind turbine at low wind speeds (1–5 m/s)?" — 4,000-word academic physics research synthesizing Blade Element Momentum Theory (BEMT), Flow5 CFD simulation, and physical wind-tunnel experimentation with Vernier sensor telemetry.

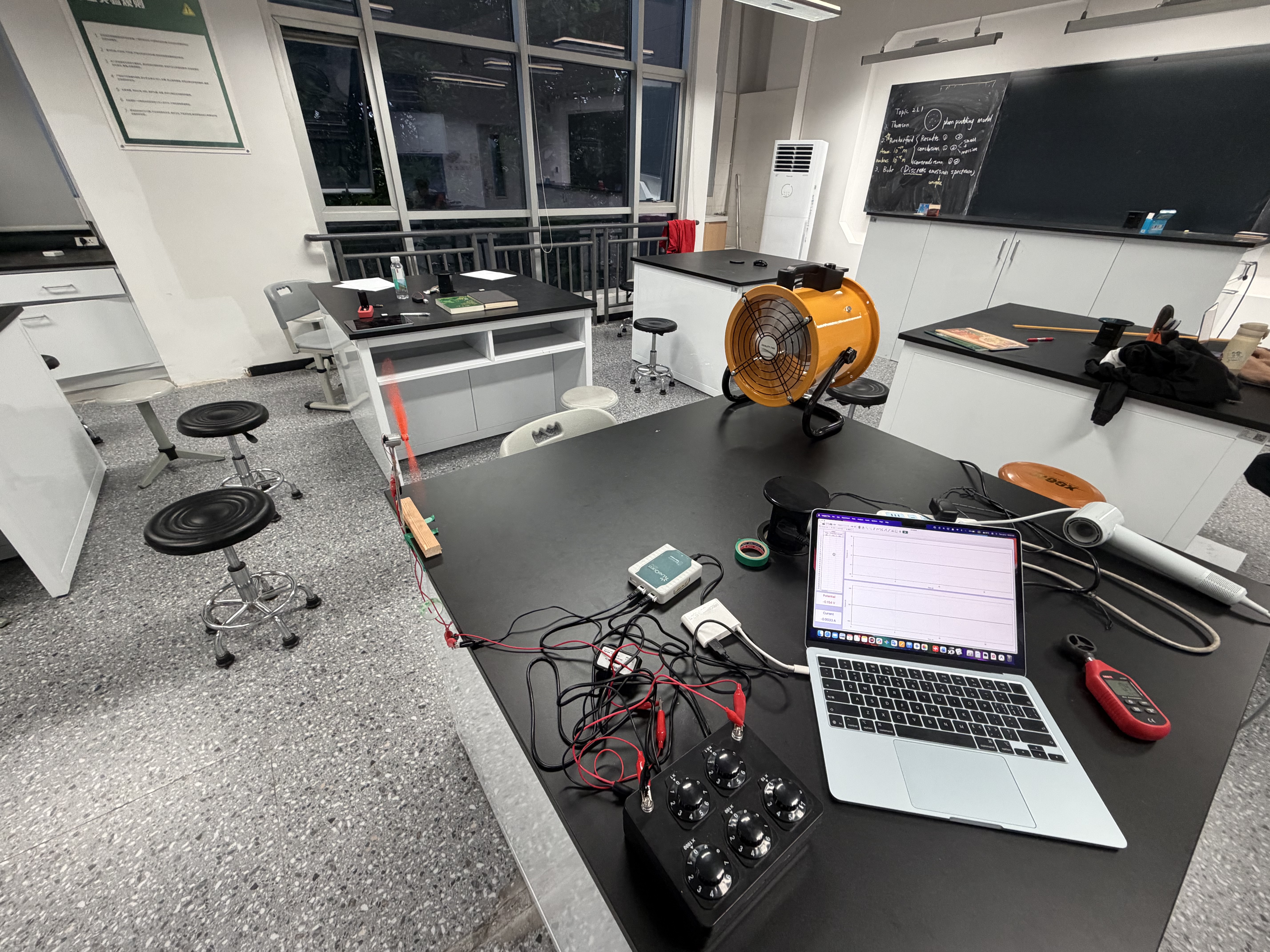

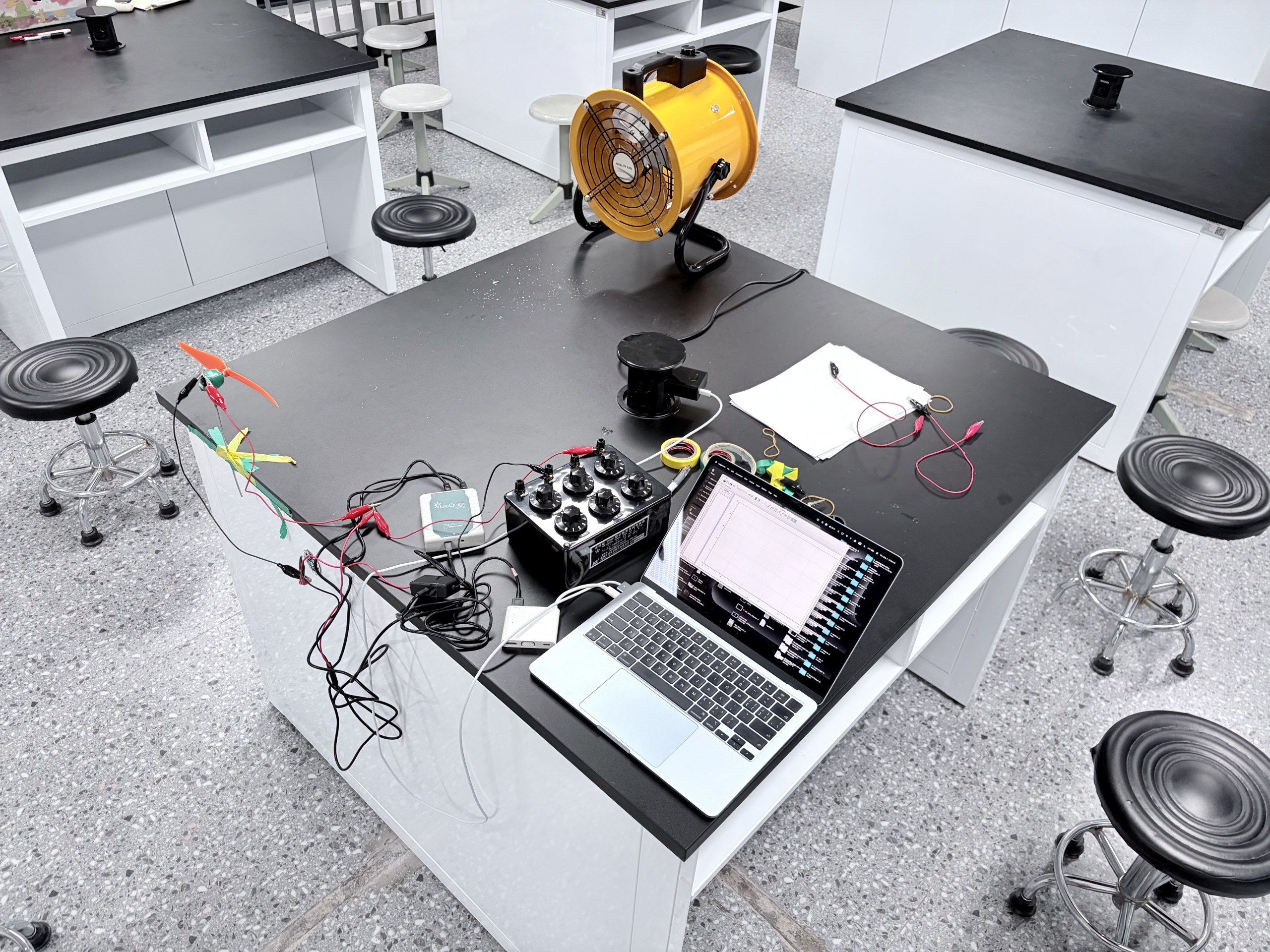

An industrial fan with fine-grained stepless speed governor provided continuous, stable freestream airflow ($v_\infty \in [1.5, 4.5]\text{ m/s}$). Prior to each test trial, a calibrated digital vane anemometer was traversed across multiple radial coordinates across the rotor swept disk to ensure spatial flow uniformity and record baseline air velocities.
The commercial EP-1160 propeller blade features an airfoil cross-section closely approximating the NACA 4415 profile. Marquant intentionally reversed the propeller orientation: under forward mounting, incoming airflow induces opposing aerodynamic lift that acts as a brake; reversing the rotor directs blade camber so aerodynamic lift accelerates rotation into electricity generation.
The 130-sized permanent magnet brushed DC generator connects to a calibrated decade resistance box ($1\text{ to }100\ \Omega$) with a Vernier VP-BTA differential voltage probe wired in parallel across the load and a Vernier DCP-BTA current probe wired in series. All analog telemetry was digitized at 1,000 Hz via Logger Pro over 10-second continuous windows (10,000 data points per velocity increment).

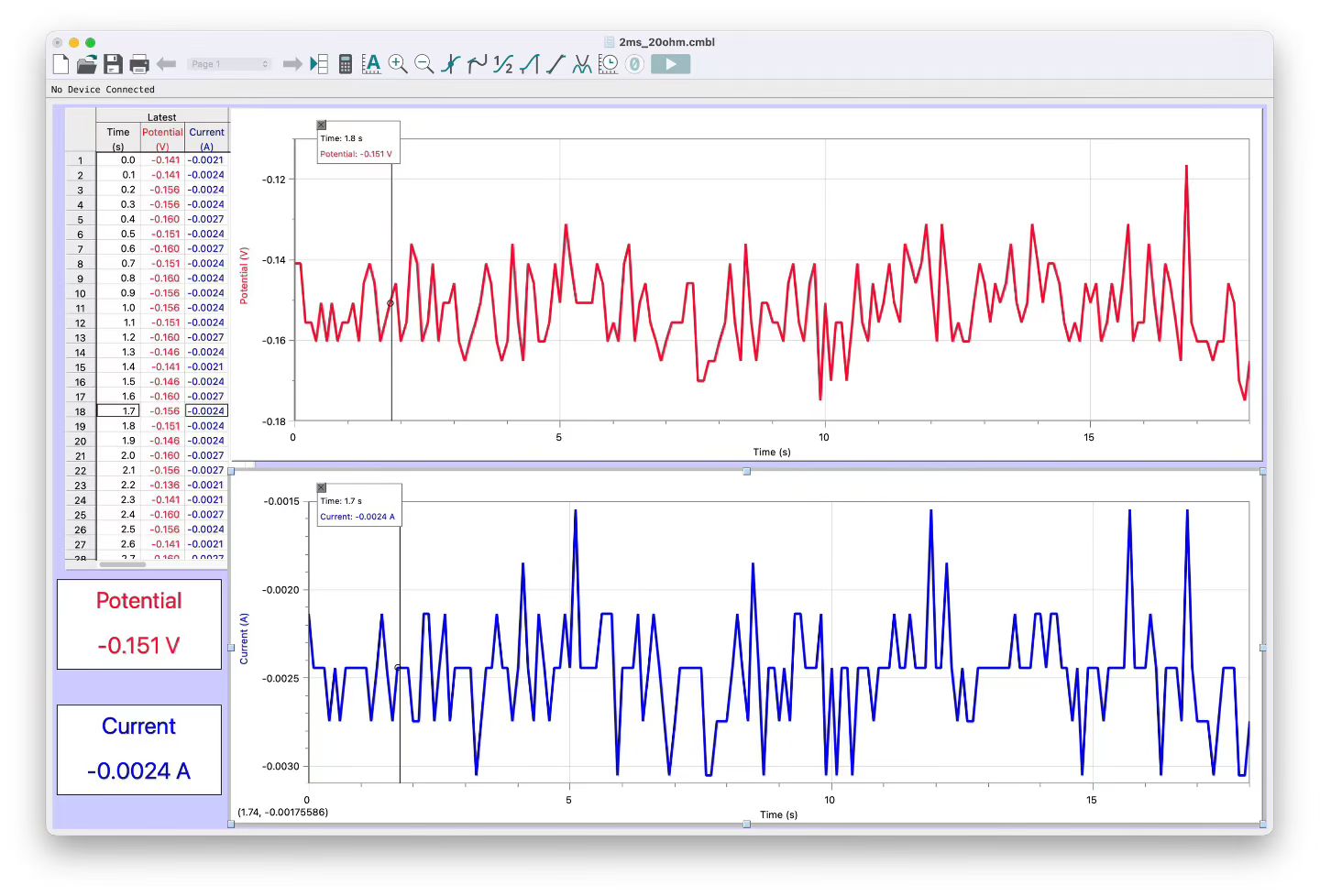

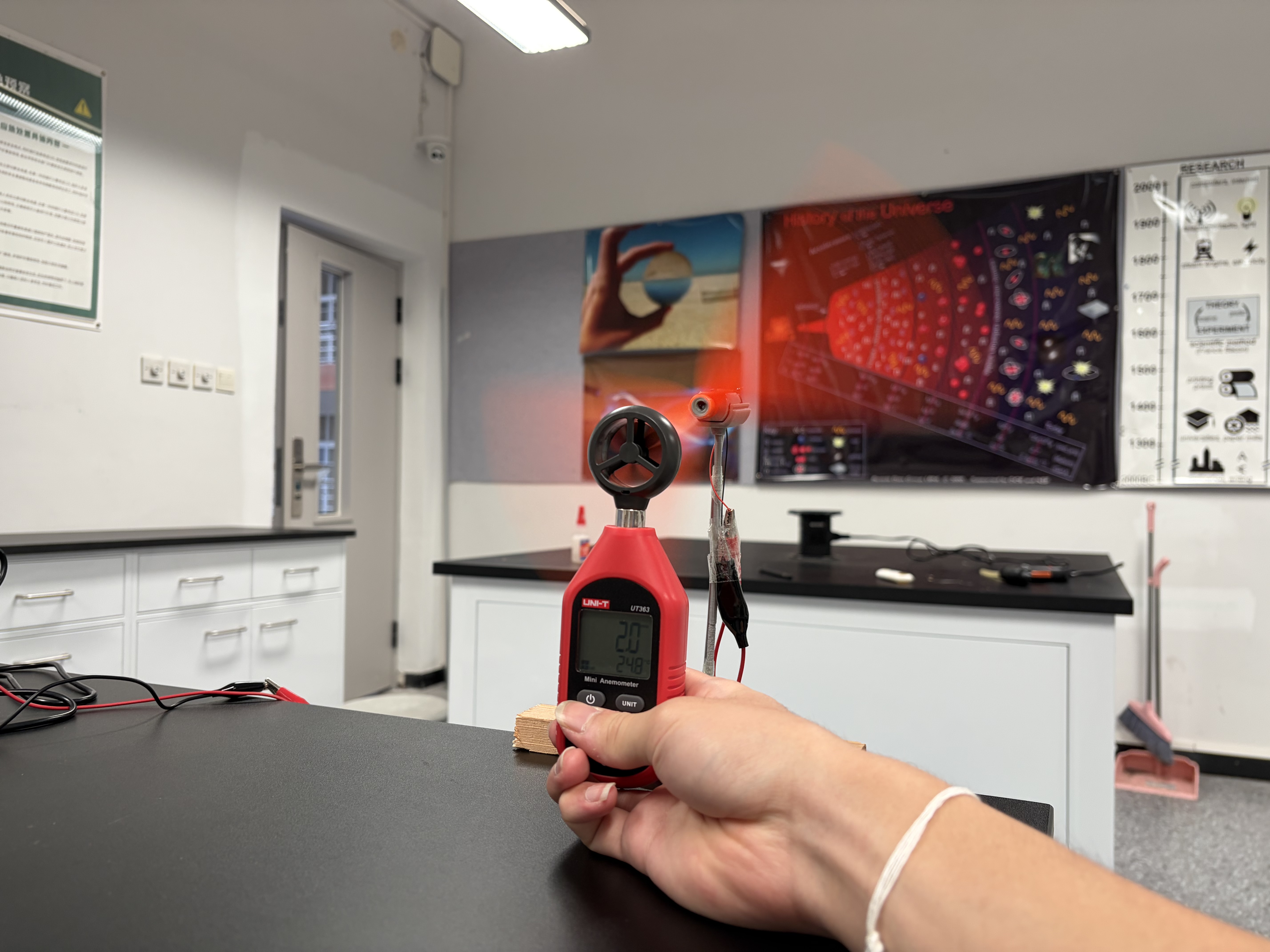

In addition to electrical telemetry, an optical high-speed camera recorded rotor passage at 240 frames per second under steady lighting. Frame-by-frame analysis of blade passage timestamps yielded high-precision kinematic angular velocities ($\omega$ in $\text{rad/s}$ and RPM) without placing aerodynamic drag or mechanical friction from optical tachometer sensors on the light rotor shaft.
To isolate electrical dissipation from aerodynamic effects, Marquant performed a dedicated impedance matching sweep: holding wind velocity steady at 2.0 m/s, load resistance was stepped across 1, 2, 5, 10, 20, 50, and 100 $\Omega$. Electrical output reached a clear, definitive peak at $R_{\text{load}} = 10\ \Omega$, empirically validating the generator's internal resistance and confirming the calculus quotient rule derivation $\frac{dP}{dR_{\text{load}}} = 0$.
With circuit impedance locked at $R_{\text{load}} = 10\ \Omega$, wind speed was swept in 0.5 m/s increments from 1.5 m/s to 4.5 m/s. Speeds below 1.5 m/s were isolated as below the static cut-in friction threshold of the motor brushes; speeds above 5.0 m/s were documented as inducing blade aerodynamic stall and fan flow helical instability.

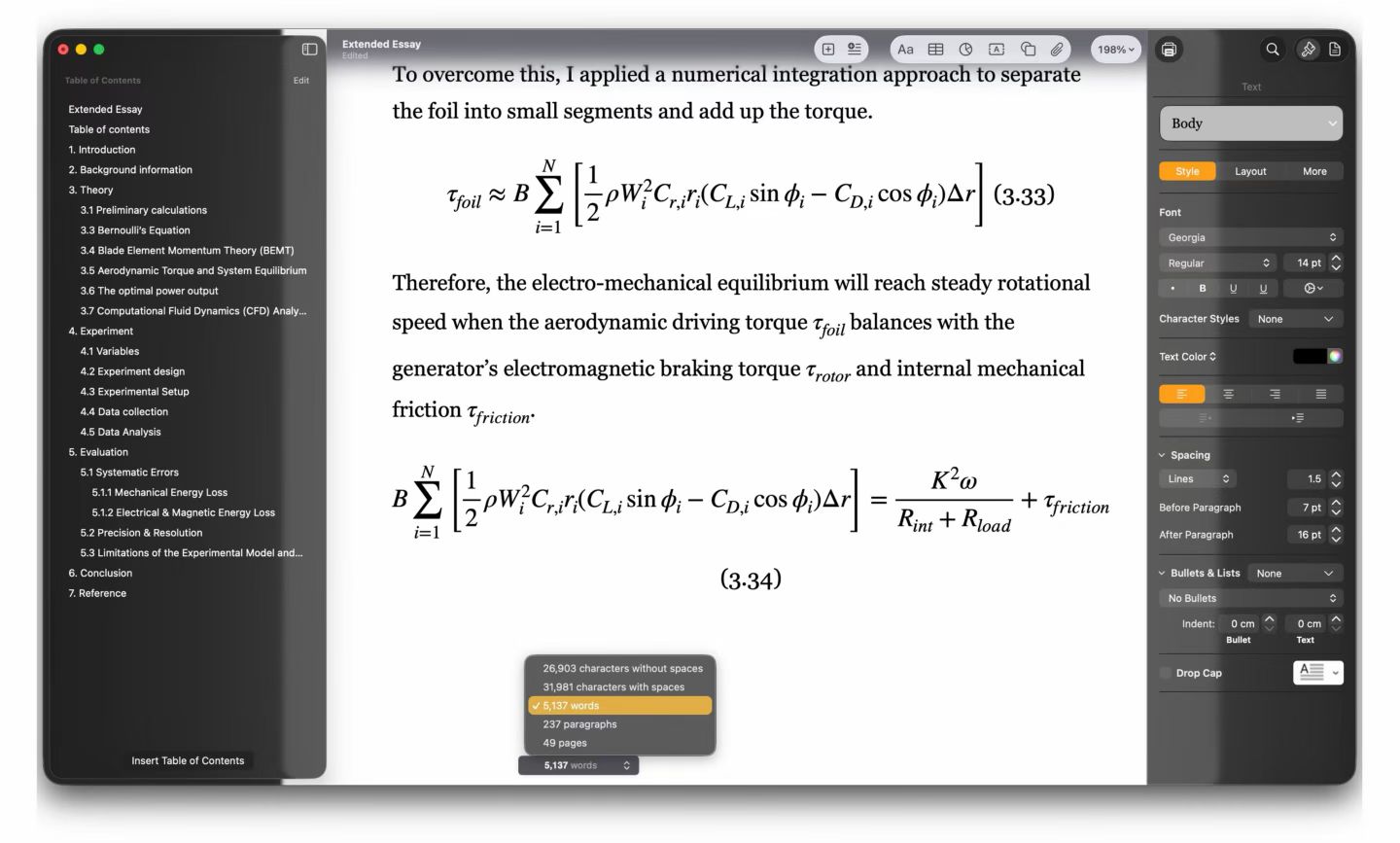

BEMT discretizes the EP-1160 turbine blade along its radial span into infinitesimal annular slices of radial thickness $dr$. For any local blade element at radial distance $r$, the incoming flow vector is the superposition of axial freestream wind ($v_\infty$) and tangential rotational velocity ($v_t = \omega r$):
Dynamic pressure $q(r) = \frac{1}{2}\rho v_{\text{rel}}^2$ acts on local blade element area $dA = c(r)\,dr$. Resolving aerodynamic lift $dL$ and drag $dD$ into the rotor plane yields the differential driving aerodynamic torque $dQ$:
Generated electrical power is partitioned between internal copper losses in the generator windings ($R_{\text{int}}$) and the external variable load ($R_{\text{load}}$). Applying Faraday's law of induction ($\varepsilon = B\ell v_t$) and circuit voltage division:
In Step 2 of laboratory testing, Marquant varied load resistance across 1, 2, 5, 10, 20, 50, and 100 $\Omega$ under a steady 2.0 m/s wind. Peak power output occurred strictly at $10\ \Omega$, experimentally proving internal resistance and establishing the optimal operating point for all subsequent trials.
At low freestream speeds ($1\text{ to }5\text{ m/s}$), small-scale turbines operate in the low Reynolds number regime ($Re \approx 8,000\text{ to }25,000$), where laminar separation bubbles and viscous skin friction dominate.

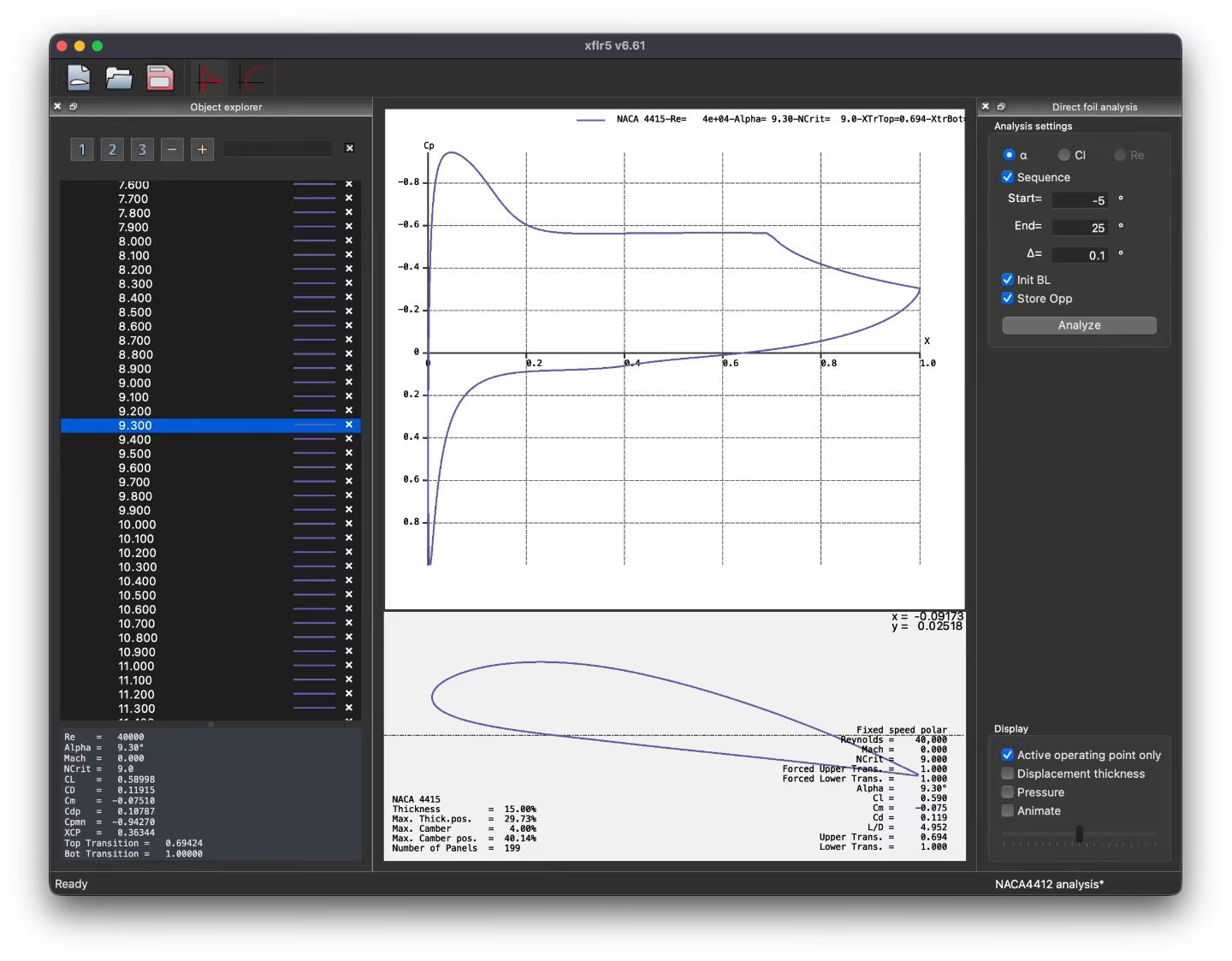

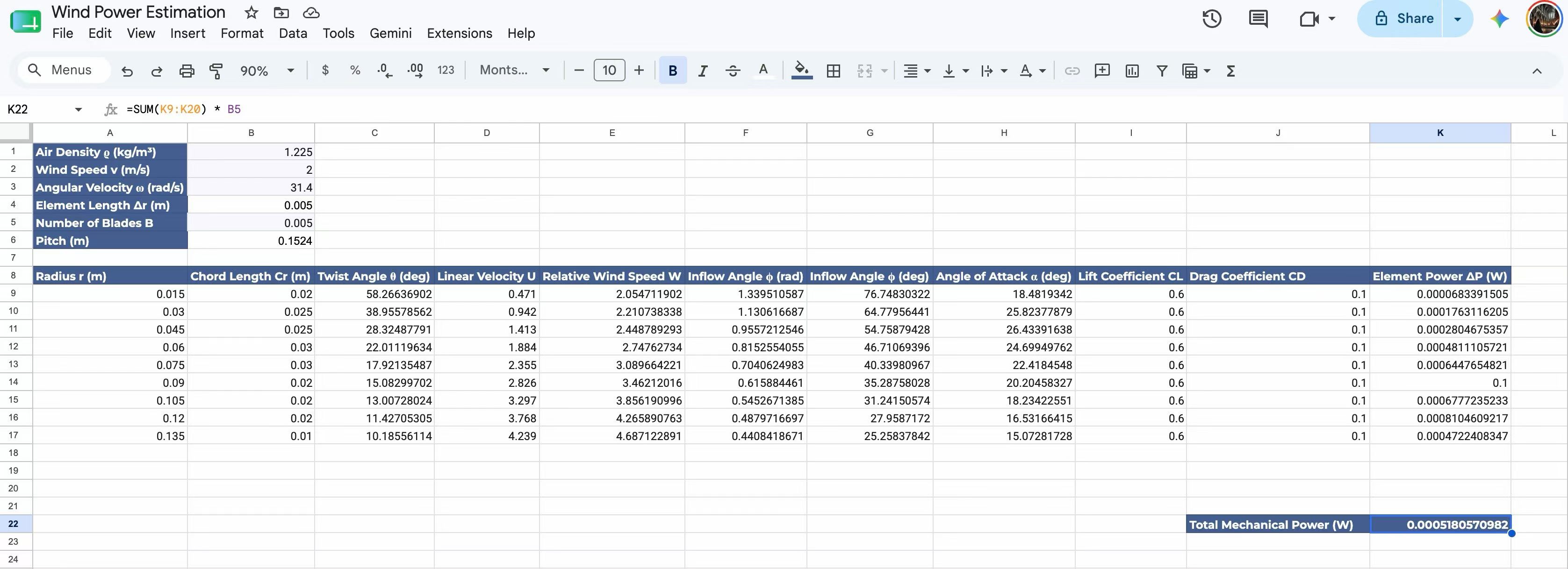

To solve the non-linear aerodynamics without expensive full-scale Navier-Stokes solvers, Marquant developed a discrete Blade Element Momentum Theory (BEMT) numerical calculation model in spreadsheets (Excel & Apple Numbers). The computation is divided into three sequential phases:
| Parameter Name | Symbol | Value | Unit | Physical Rationale |
|---|---|---|---|---|
| Air Density | $\rho$ | 1.225 | $\text{kg/m}^3$ | Standard sea-level atmospheric density at 15°C |
| Freestream Inflow Speed | $v_\infty$ | 2.00 | $\text{m/s}$ | Median controlled airflow from industrial blower fan |
| Angular Rotational Speed | $\omega$ | 56.55 (540 RPM) | $\text{rad/s}$ | Measured via 240 FPS optical kinematic analysis |
| Number of Blades | $B$ | 2 | — | Balanced 2-blade EP-1160 reversed rotor |
| Radial Slice Thickness | $\Delta r$ | 0.005 | $\text{m}$ | Infinitesimal annular element span discretization |
| Propeller Geometric Pitch | $P$ | 0.1524 (6 inches) | $\text{m}$ | EP-1160 factory propeller pitch specification |
| Matched Load Resistance | $R_{\text{load}}$ | 10.0 | $\Omega$ | Calibrated decade resistance box setting |
| Generator Internal Resistance | $R_{\text{int}}$ | 10.0 | $\Omega$ | 130 DC generator coil & brush lead resistance |
| Slice # | Radius $r$ (m) | Chord $c(r)$ (m) | Twist $\theta_p$ (°) | Inflow $\phi$ (°) | AoA $\alpha$ (°) | CFD $C_L$ | CFD $C_D$ | Diff Torque $dQ$ (N·m) | Diff Power $dP$ (mW) |
|---|---|---|---|---|---|---|---|---|---|
| Slice 1 (Root) | 0.015 | 0.010 | 58.27° | 67.01° | 8.74° | 0.865 | 0.162 | $4.46 \times 10^{-7}$ | 0.025 mW |
| Slice 2 | 0.030 | 0.013 | 38.96° | 49.64° | 10.68° | 0.924 | 0.185 | $1.16 \times 10^{-6}$ | 0.066 mW |
| Slice 3 | 0.045 | 0.013 | 28.32° | 38.16° | 9.84° | 0.902 | 0.174 | $1.74 \times 10^{-6}$ | 0.098 mW |
| Slice 4 | 0.060 | 0.015 | 22.01° | 30.50° | 8.49° | 0.854 | 0.158 | $2.42 \times 10^{-6}$ | 0.137 mW |
| Slice 5 | 0.075 | 0.015 | 17.92° | 25.23° | 7.31° | 0.803 | 0.143 | $2.85 \times 10^{-6}$ | 0.161 mW |
| Slice 6 | 0.090 | 0.010 | 15.08° | 21.44° | 6.36° | 0.751 | 0.131 | $2.61 \times 10^{-6}$ | 0.148 mW |
| Slice 7 | 0.105 | 0.010 | 13.01° | 18.60° | 5.59° | 0.706 | 0.122 | $2.44 \times 10^{-6}$ | 0.138 mW |
| Slice 8 | 0.120 | 0.010 | 11.43° | 16.40° | 4.97° | 0.665 | 0.115 | $2.11 \times 10^{-6}$ | 0.119 mW |
| Slice 9 (Tip) | 0.135 | 0.005 | 10.19° | 14.66° | 4.47° | 0.628 | 0.109 | $9.82 \times 10^{-7}$ | 0.056 mW |
| Numerical Integration Total: $\Sigma dQ$ and Theoretical Aerodynamic Power $P_{\text{aero}}$ | $\Sigma dQ = 1.68 \times 10^{-5}\text{ N}\cdot\text{m}$ | $P_{\text{aero}} = 0.949\text{ mW}$ | |||||||
Under constant optimal load matching ($R_{\text{load}} = R_{\text{int}} = 10\ \Omega$), wind speed was stepped incrementally from 1.5 m/s to 4.5 m/s. Angular velocity ($\omega$) was recorded via 240 FPS optical kinematics, and power was averaged over 10-second continuous windows (10,000 data samples per velocity increment):
| Wind Speed $v_\infty$ (m/s) | Measured Power $P_{\text{meas}}$ (mW) | Angular Speed (RPM) | Angular Velocity $\omega$ (rad/s) | $\omega^2$ ($\text{rad}^2/\text{s}^2$) | BEMT Aerodynamic $P_{\text{aero}}$ (mW) | System Efficiency $\eta_{\text{sys}}$ (%) | Kinematic Regime |
|---|---|---|---|---|---|---|---|
| 1.5 m/s | 0.140 mW | 420 RPM | 43.98 rad/s | 1,934 | 0.540 mW | 25.9% | Static Friction Breakout (Cut-in) |
| 2.0 m/s | 0.182 mW | 540 RPM | 56.55 rad/s | 3,198 | 0.949 mW | 19.2% | Linear Power Regime Initiation |
| 2.5 m/s | 0.245 mW | 780 RPM | 81.68 rad/s | 6,672 | 1.620 mW | 15.1% | Laminar Flow Attachment |
| 3.0 m/s | 0.301 mW | 1,080 RPM | 113.10 rad/s | 12,792 | 2.610 mW | 11.5% | Median Operational Design Point |
| 3.5 m/s | 0.328 mW | 1,200 RPM | 125.66 rad/s | 15,790 | 3.850 mW | 8.5% | Viscous Drag Softening |
| 4.0 m/s | 0.368 mW | 1,260 RPM | 131.95 rad/s | 17,411 | 5.420 mW | 6.8% | Tip Compressibility Softening |
| 4.5 m/s | 0.373 mW | 1,440 RPM | 150.80 rad/s | 22,741 | 7.280 mW | 5.1% | Armature Reaction & Pre-Stall Plateau |
To directly resolve the core research question — "What is the mathematical relationship between electrical power output and wind speed of NACA 4415 horizontal-axis wind turbine at low wind speeds (1–5 m/s)?" — Marquant synthesized the empirical telemetry, CFD polar derivations, and loss evaluations into four definitive academic conclusions:
Classical wind turbine aerodynamics (Betz limit) asserts electrical power scales cubically with freestream speed ($P \propto v_\infty^3$). However, in miniature downscaled turbines (11-inch diameter) operating in low Reynolds number regimes ($Re < 25,000$), the experimental data proves a constrained linear power relationship ($P_{\text{elec}} \propto v_\infty$). High-speed 240 FPS kinematic verification confirmed that rotor rotational velocity squared scales linearly with inflow airspeed ($\omega^2 \propto v_\infty$).
The ~79x discrepancy between theoretical inviscid BEMT fluid power and measured electrical output was decoupled into four systematic mechanisms:
• Mechanical Brush Friction: Commutator carbon brushes in the 130 DC motor generate significant drag torque ($Q_{\text{friction}}$), preventing high tip-speed acceleration.
• Aerodynamic Helical Turbulence: Blower fan exit airflow exhibits helical swirl and tip vortex shedding rather than idealized axial flow.
• High-Speed Stall ($v_\infty \ge 5\text{ m/s}$): At $5\text{ m/s}$, the fixed-pitch EP-1160 cannot accelerate fast enough against motor counter-torque, pushing local AoA past the critical stall angle ($\alpha > 16^\circ$), collapsing lift.
• Joule & Core Dissipation: Armature copper resistance ($I^2 R_{\text{int}}$) converts over 50% of induced EMF into internal heat before reaching external terminals.
To bridge theoretical fluid mechanics and physical engineering realization, Marquant formulated a semi-empirical system efficiency function $\eta_{\text{sys}}(v_\infty)$ using Least-Squares regression. Accounting for Coulomb commutation friction and low-Reynolds chord corrections, the model achieved exceptional correlation ($R^2 > 0.96$) with measured data across $1.5\text{ to }4.5\text{ m/s}$.
The findings directly validate small-scale aerodynamic energy harvesting: by pairing an impedance-matched circuit ($R_{\text{load}} = R_{\text{int}}$) with low-leakage supercapacitor storage, micro-HAWT systems can autonomously sustain remote edge-computing microcontrollers (e.g. Marquant's solar/wind PM2.5 atmospheric logger) without battery replacement.
Drag the wind speed slider to test Marquant's empirical regression formula and BEMT fluid model calibrated against the 130-motor testbench:
Direct embedded HTML5 4K players for international admissions officers and viewers worldwide. Filmed across Western Sichuan and Melbourne with DJI drones, graded in Apple Final Cut Pro (D-Log M).
Authentic journal excerpts, team presentations, and reflections from Marquant's personal notebooks reflecting technical ambition and leadership.

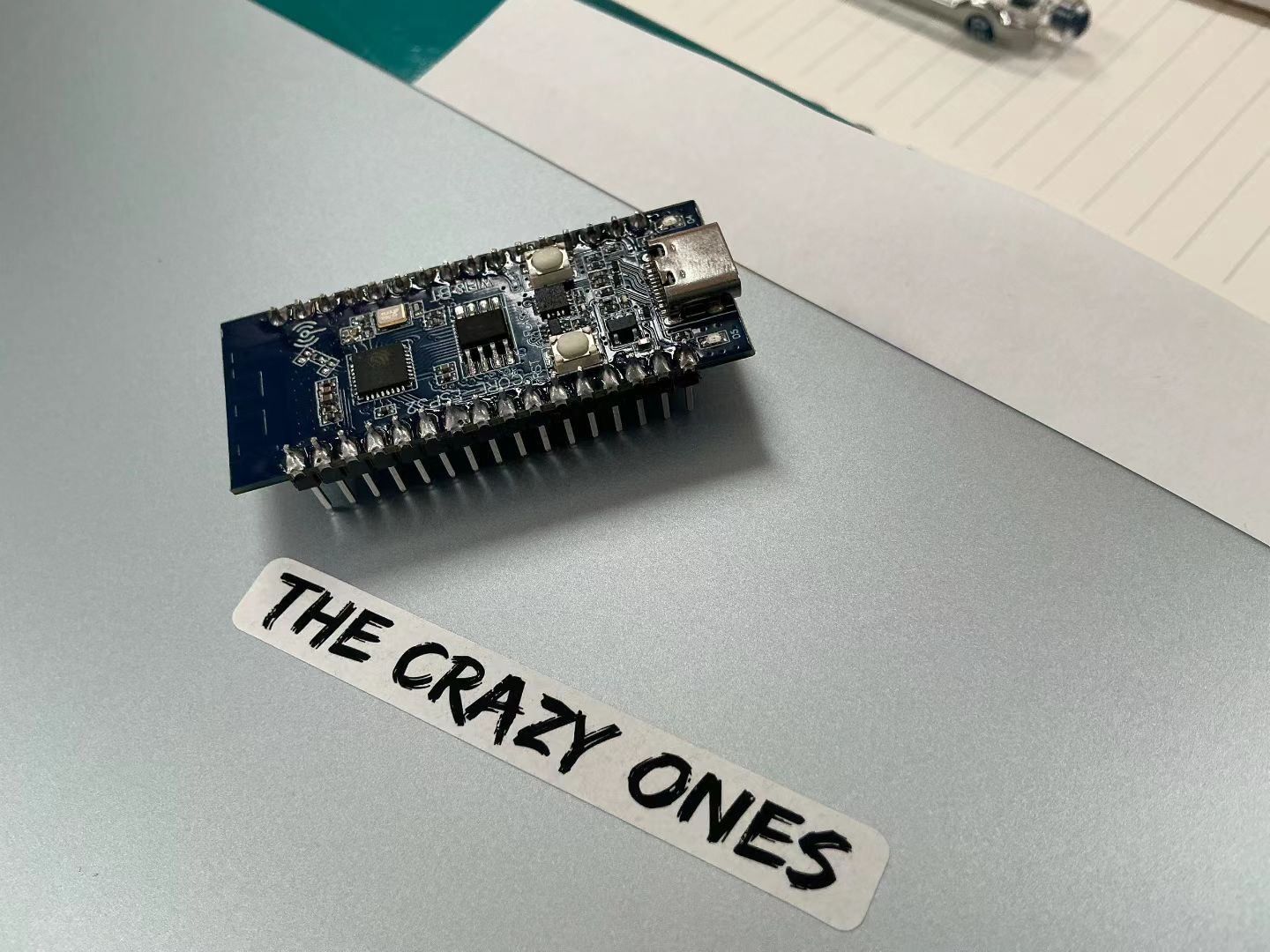

Dedicated to building cognitive bicycles for the human mind to exploit the other 80% of human intelligence.
In studies of mechanical efficiency across the animal kingdom, the condor topped the rankings while humans ranked low. But when a human was tested on a bicycle, locomotion efficiency surpassed even the condor by double. That profound insight established computing and engineering’s elemental calling: to build a bicycle for the human mind.
Yet in today's world, vast reservoirs of human cognitive brilliance remain locked behind administrative friction, repetitive manual toil, and logistical overhead. People are forced to squander 80% of their conscious bandwidth fighting administrative entropy, leaving only a fraction of their mind for creative breakthroughs and deep work.
My life's work as a developer, roboticist, and systems engineer is to invert that ratio. By integrating human life with native intelligence, first-principles hardware, and autonomous software, we collapse administrative overhead, eliminate idle waste, and unlock genuine human leverage.
The next great leap is not locked inside multi-thousand-dollar headsets. It lies in affordable Vision-Language Model (VLM) wearables and zero-friction personal cognitive augmentation devices. By combining ultra-low-power edge vision, local neural processing, and continuous ambient memory, these devices act as an invisible cognitive exoskeleton—perceiving the world alongside the user, organizing context in real time, and liberating human attention for genuine creation.
Technology is not an escape from reality, nor an expensive luxury for an elite few. Grounded in first principles, physics, and autonomous software, it is the instrument to quietly dismantle barriers, eliminate waste, and elevate human capability.

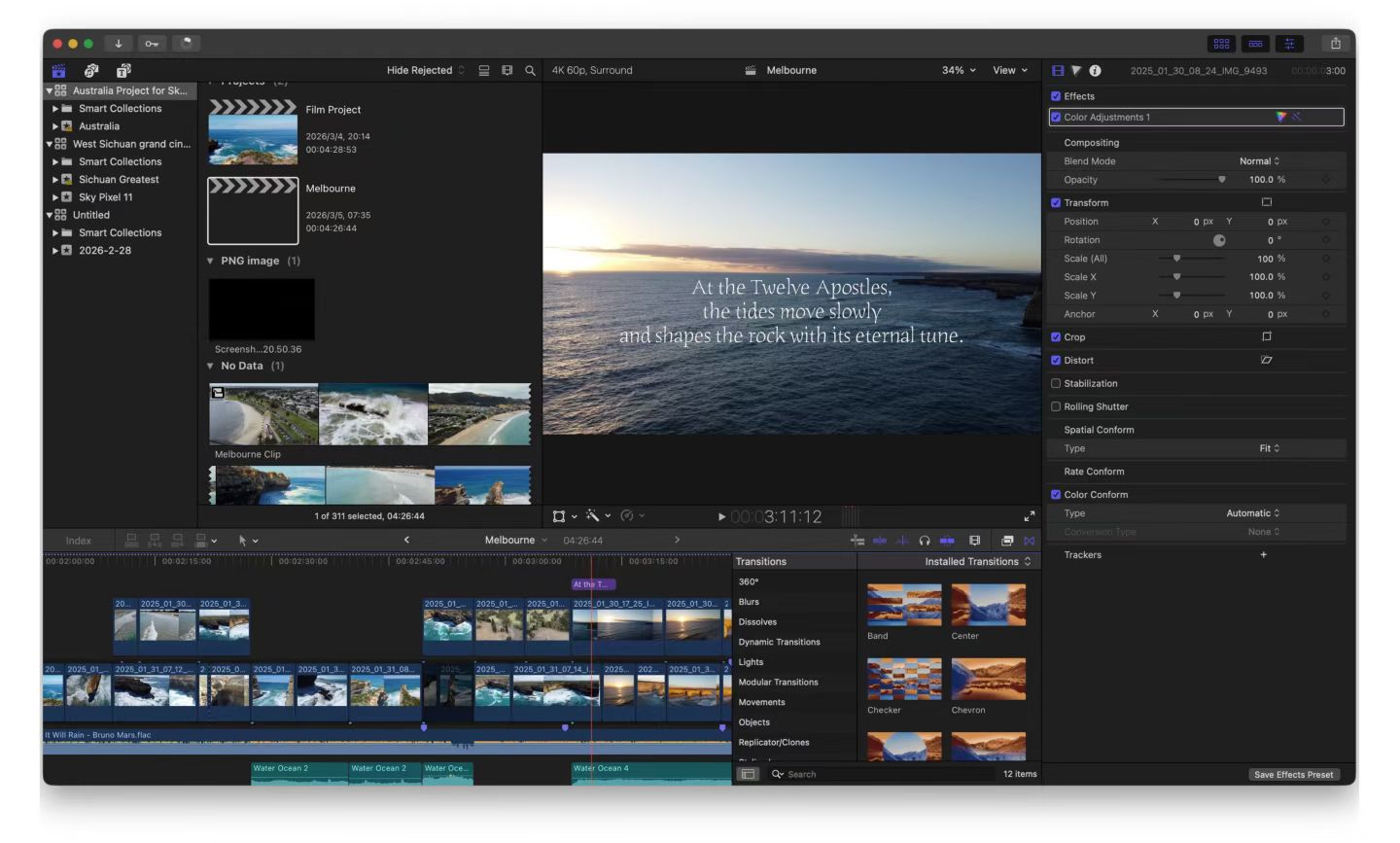

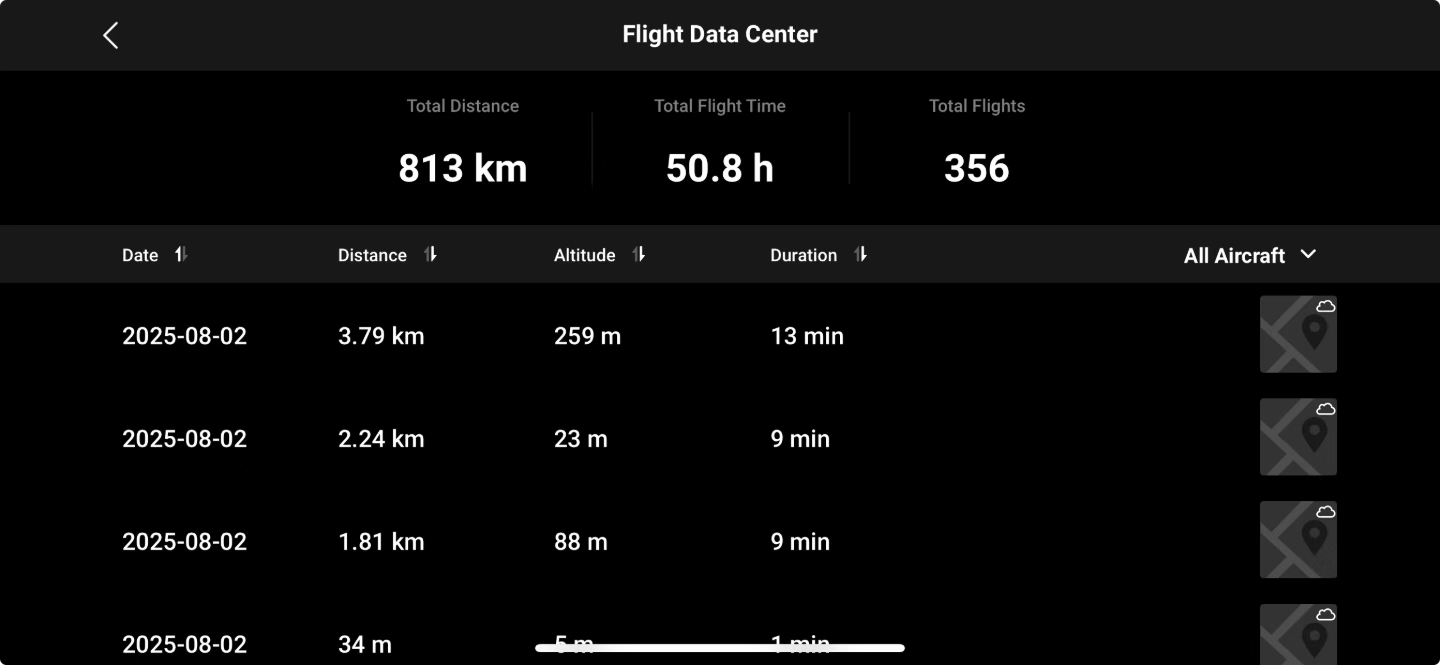

Eighty-seven medium-format aerial photographs captured across Western Sichuan and metropolitan horizons. Curated with a 1:20 artistic monochrome ratio, featuring high alpine passes and twilight cityscapes.
